ATORN 2-point internal micrometer, meas. range 50-150 mm, conn. thread M7 x 1

Name: ATORN 2-point internal micrometer, meas. range 50-150 mm, conn. thread M7 x 1
Brand: ATORN
SKU: 31678115

Brand: ATORN

Calibration Group: H

DIN: 863

Art.-no. 31678115

Manufacturer article no. 31160044

EAN 4050293402223

All versions

Similar products

Individual prices for customers after login

ATORN 2-point internal micrometer, meas. range 50-150 mm, conn. thread M7 x 1

Art.-no. 31678115

Quantity

Price per

Piece

You need more information or have not found your desired product?

Login/Register
Call customer service: +33 (0)1 69 19 43 90

Application

For measuring large bore diameters, distances on workpieces, etc.

Execution

Scale with anti-glare, brushed chromium-plated finish
Carbide-tipped measuring faces

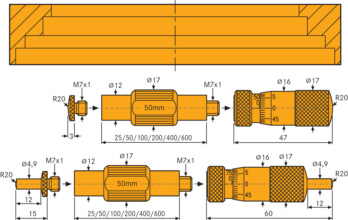

Can be individually configured for the diameter being measured
Graduated drum, Ø 17 mm
Measuring body, 25 mm, adjustable
Threaded connection, M7 x 1

Advantage

Ready for measuring with no special settings required
High level of measuring accuracy due to extension rods hardened at the ends, lapped along the length of the gauge block and with insulated grips to prevent transfer of heat from the hands
Measuring range extendible via screw-on extensions

Delivery

In wooden case

Product information

HAHN+KOLB Catalogue

Certificates/ Documents

Brand	ATORN
Min./max. length measuring range	50-150 mm
Error limit	6 µm
Data transmission type	0 - not applicable
Vernier scale	0.01 mm
Extensions provided	50 mm, 25 mm
Measuring spindle increments	0.5 mm
Calibration Group	H
DIN	863
