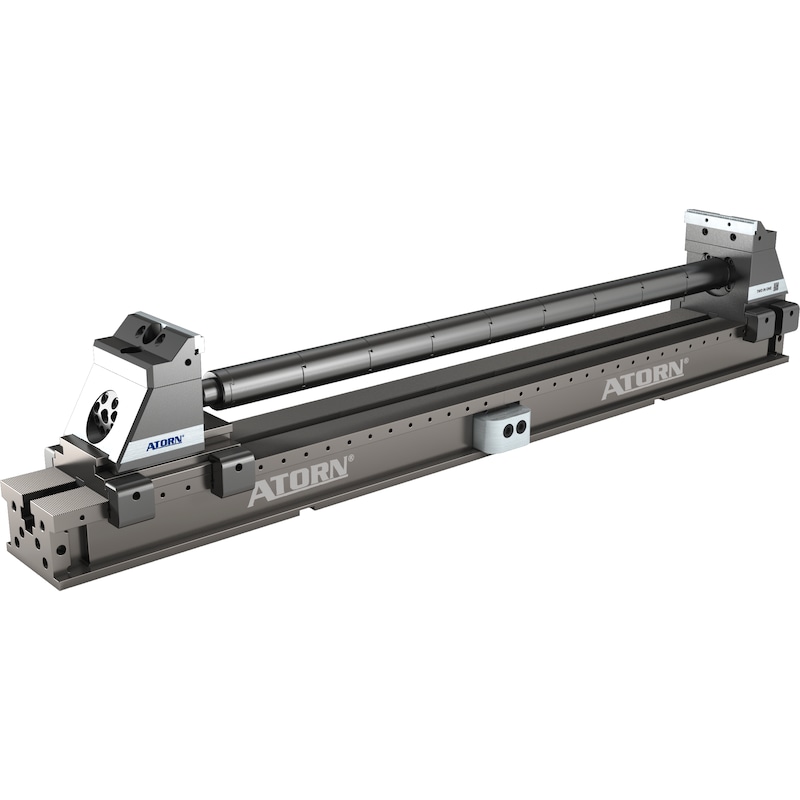

ATORN 5-A clamping set L600, with jaws

Brand: ATORN

Art.-no. 28759704

Manufacturer article no. 21724209

EAN 4050293628944


Individual prices for customers after login

You need more information or have not found your desired product?

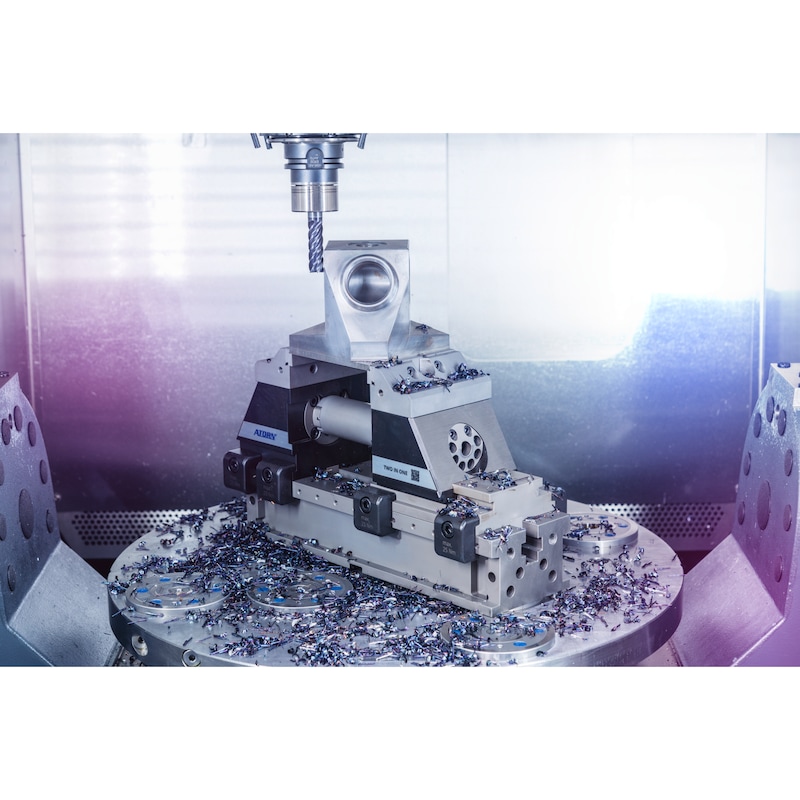

Application

Unique innovative system design that combines two basic applications in one product. Two-in-one for use as a 5-axis or multi-clamping system. Highly flexible, modular jaw range, positive-locking jaw connection.

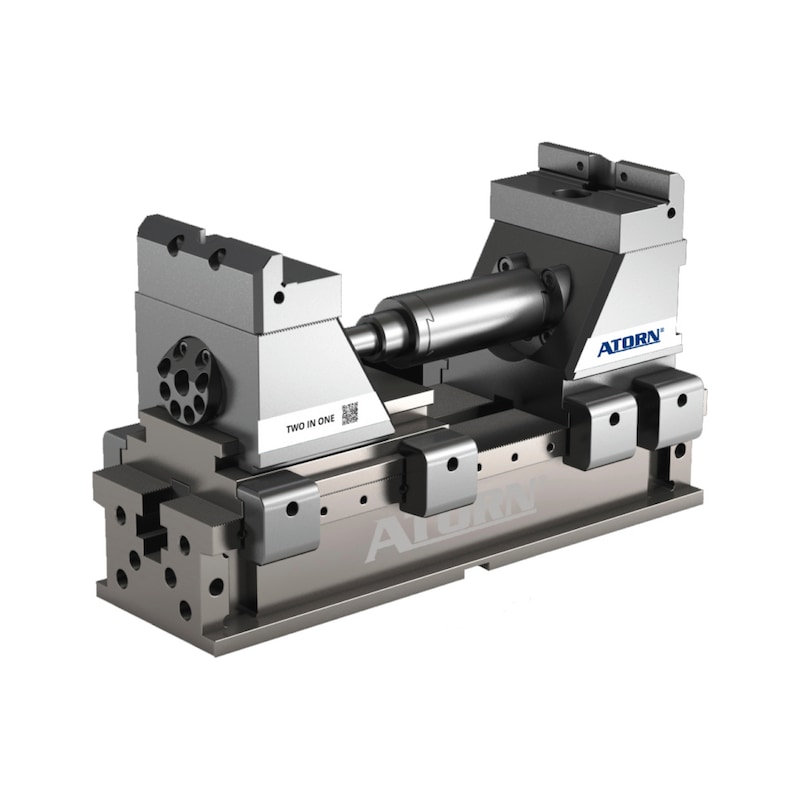

Execution

  • The position of the fixed and movable jaws on the rail can be altered so that large and small parts are always accommodated centrally relative to the table
  • System is infinitely extendable using the adapter set (available on request)
  • When clamping with an increased clamping width, the clamping distance is only 30 mm less than rail length. Example: With a rail length of 400 mm, the clamping width can be 370 mm. Only using the large part jaw
  • Positive-locking jaw interface
  • Easy to clean: If necessary, the entire system can be disassembled, cleaned and reassembled in just a few minutes
  • 100 mm clamping range without adjustment
  • 40 kN clamping force at a tightening torque of 85 Nm
  • Torque wrench 20-120 Nm ref. no. 52240120; screwdriver bit AF 12 hex 1/2 drive ref. no. 58688320

Advantage

  • Extremely stiff for low vibration
  • Two in one: The system can be used as a 5-axis and multi-clamping system. This is a unique feature. The base is an ATORN clamping rail from the 120 series
  • Tool-free spindle extension - mounting and removal in one click. Smart clamping solution at a great price
  • Simple and straightforward to use. The system can be changed over very quickly
  • Optimised interfering edge design

Delivery

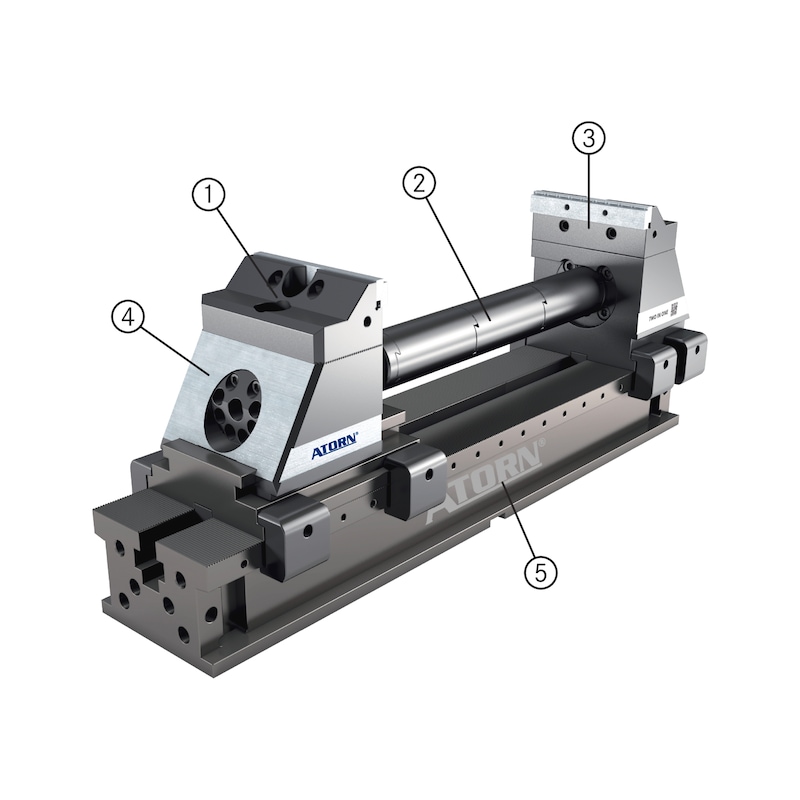

1x clamping rail, 1x complete 5-axis system, 2x standard jaws, 2x screw-in jaws, spindle extensions (number of pieces dependent on version and rail length)

Product information
CAD data (available after login)

Certificates/ Documents

 |

 |

Brand

ATORN

Type

Two in One 600 mm

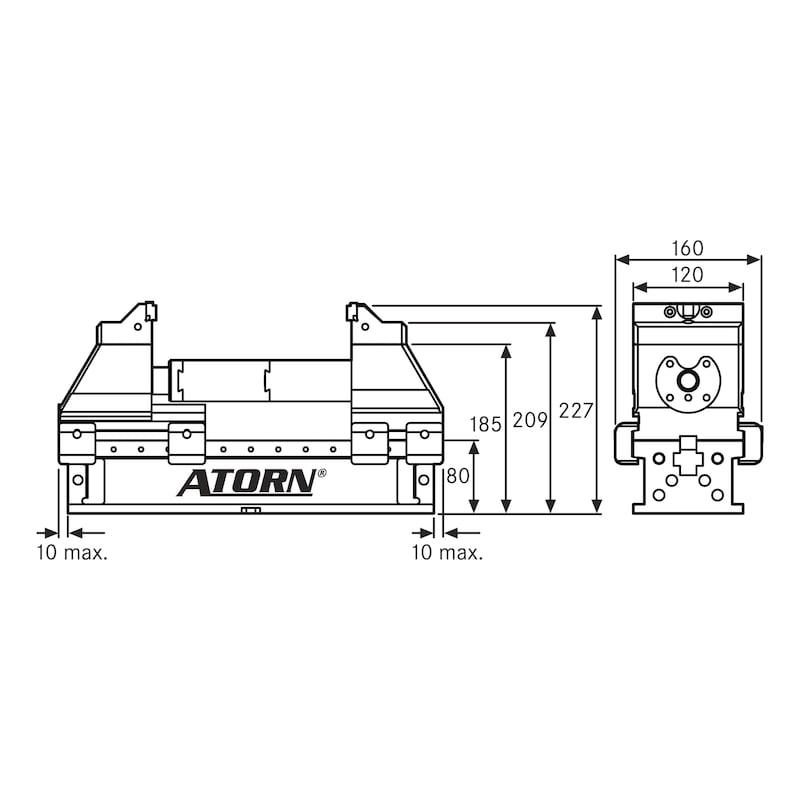

Jaws width

120 mm

Body height

228 mm

Body width

160 mm

Body length

600 mm

Clamping rail length

600 mm

Clamping rail width

120 mm

Clamping rail height

80 mm

Min./max. clamping width

0-570 mm

Tension force

40 kN

Weight

60.8 kg

Groove width

20 mm

Width across flats

12 mm

Required accessory:
