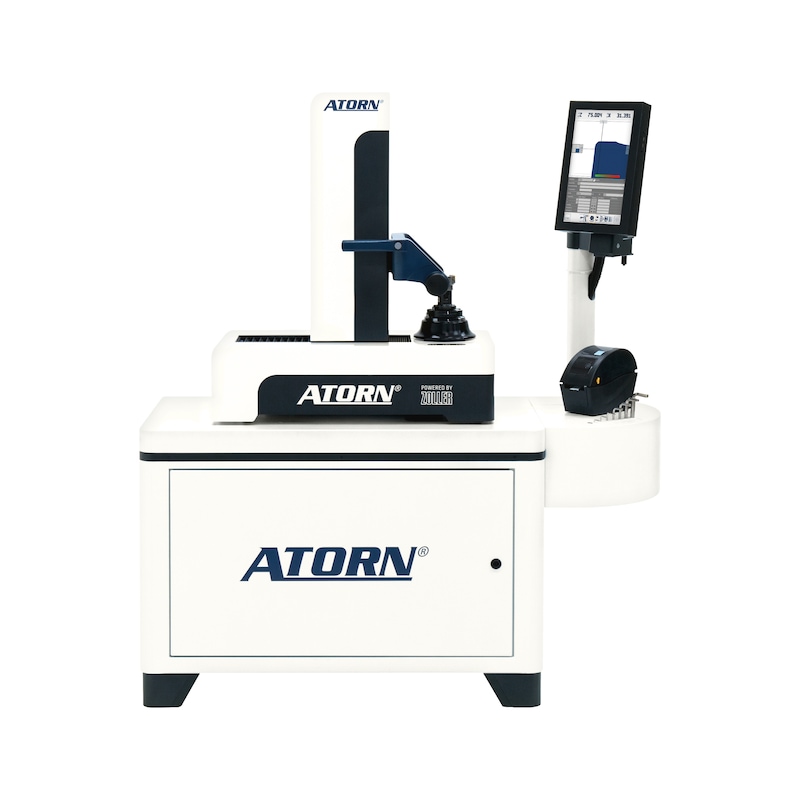

ATORN ImageController1, 600 mm

Brand: ATORN

Art.-no. 23961216

Manufacturer article no. 22250092

EAN 4050293432732


Individual prices for customers after login

You need more information or have not found your desired product?

Application

The ATORN ImageController1 presetter with great features for excellent value for money. Adjust your tools quickly, easily and to the nearest µm. Presetters are able to withstand the rigours of workshop use and can be set up directly next to CNC machines in machining and testing centres or in measurement rooms. All important basic functions for measuring your tools, such as length, diameter, angle, radius, concentricity and axial runout come as standard. A dynamic crosshair pointer detects and measures tool cutters automatically within the entire camera image.

Execution

  • High-precision SK50 spindle with integrated calibration edge, 4 x 90° indexing and 360° spindle brake
  • Under-table in sturdy industrial design
  • Memory for 99 adapters and up to 3,000 tools
  • Automatic zero-point monitoring
  • Simple operation using 13.3 inch vertical touchscreen monitor
  • Automatic cutting edge detection and zero-point monitoring
  • USB 2.0 interface, data output via USB. Output of thermal labels
  • Compass needle - simple camera positioning for measuring set values on the tool
  • Dynamic crosshair for automatic measurement
  • Power-operated tool clamp (optional).

Advantage

  • Fast μm-precise measurement and setting of tools
  • 20x magnification of the cutting edge in incident light for quality control
  • EZnavigator compass needle - simple camera positioning for measuring set values on the tool
  • 12x magnification of the cutting edge in incident light for quality control
  • USB 2.0 interface, data output via USB

Notes

Price: without shipping, packaging, training and commissioning.

Delivery

1x ATORN ImageController1

Product information

Certificates/ Documents

 |

 |

Brand

ATORN

Type

ATORN 600 with IC1

Measuring range of X axis

420 mm

Measuring range of Z axis

600 mm

Repeat accuracy (+/-)

0.002 mm

Concentricity tolerance

0.002 mm

Compressed air supply

6 bar

Max. screen slant

13.3 in
