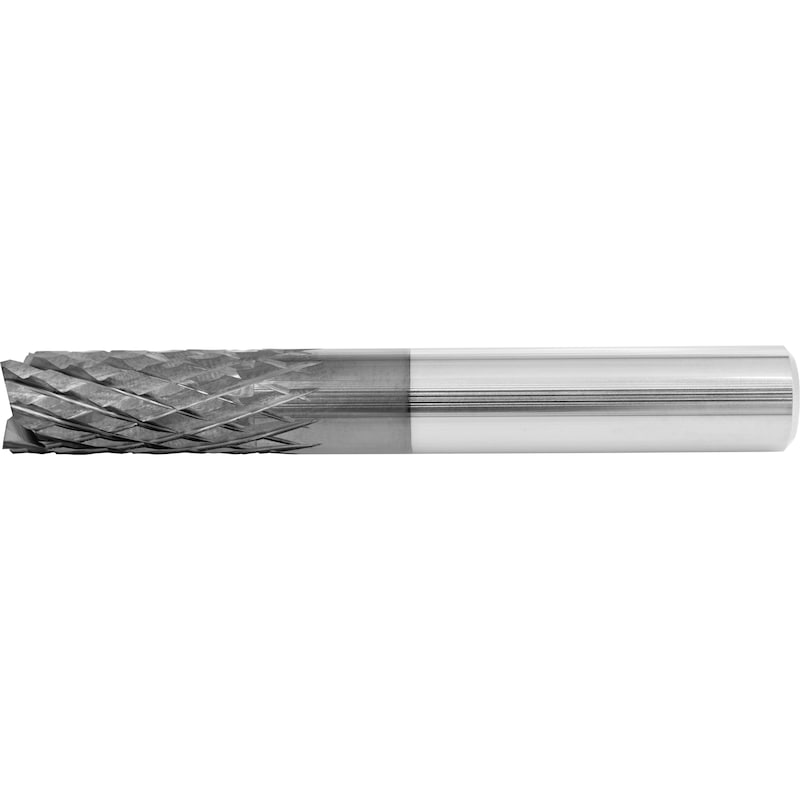

ATORN SC compression milling cutter diameter 12.0 mm W-B:13 L:83x26 d12

Brand: ATORN

Surface: Diamond coating

Length: 83 mm

Art.-no. 16658400

Manufacturer article no. 10440661

EAN 4050293439182


Individual prices for customers after login

You need more information or have not found your desired product?

Application

With this tool, the spiral changes from left to right, which leads to the axial cutting forces being compressed at a centred point. The tools are available in three lengths to ensure compression always occurs in the centre of the workpiece. This allows delamination issues to be more effectively dealt with. HSC compression milling cutters are especially suitable for machining epoxy resin or polyester-based plastics with carbon or glass fibres and make it possible to manufacture surfaces in finishing quality (ra < 2 µm).

Execution

  • Solid carbide ultra-fine grain
  • Diamond coating
  • Straight shank in accordance with DIN 6535 HA
  • 3 spiral changes available

Advantage

  • Spiral change from left to right
  • Simultaneous drawing and pushing cut
  • Opposing flutes with chip breakers
  • Axial cutting forces run together in the middle

Notes

You can find detailed information on the usage value of this tool on our online shop.

Product information

Certificates/ Documents

 |

 |

Brand

ATORN

Main EAN Code

4050293439182

Manufacturer Part Number

10440661

Cutting material

SC

Surface

Diamond coating

Tool holding device

HA parallel shank

Construction length

Normal

Cutting edge diameter

12 mm

Cutting edge length

26 mm

Clearance length

13 mm

Length

83 mm

Shank diameter

12 mm

fz aluminium

0.2 mm

Product Group

108

Gross Weight

0.050 kg

Art.-no.
Cust. Mat. No.

Hazardous Material
