ATORN chamfer and centring cutter 45 degrees diameter 16.0 mm - Chamfer and centring cutters

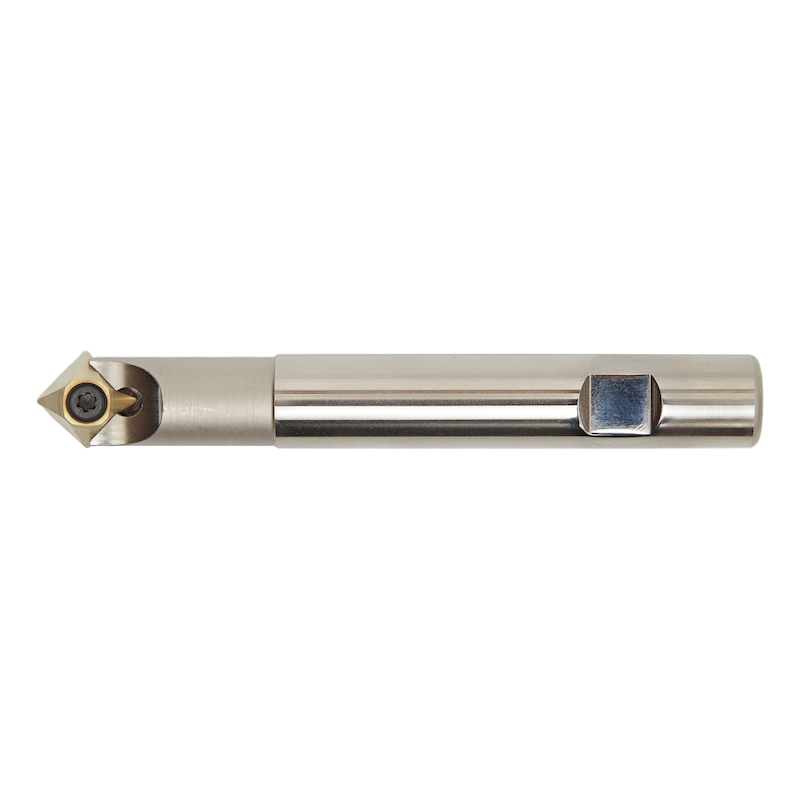

ATORN chamfer and centring cutter 45 degrees diameter 16.0 mm - Chamfer and centring cutters - 1

ATORN chamfer and centring cutter 45 degrees diameter 16.0 mm

Name: ATORN chamfer and centring cutter 45 degrees diameter 16.0 mm
Brand: ATORN
SKU: 16107500

Brand: ATORN

Length: 120 mm

Art.-no. 16107500

Manufacturer article no. 12232715

EAN 4050293636970

All versions

Similar products

Individual prices for customers after login

ATORN chamfer and centring cutter 45 degrees diameter 16.0 mm

Art.-no. 16107500

Quantity

Price per

Piece

You need more information or have not found your desired product?

Login/Register
Call customer service: +33 (0)1 69 19 43 90

Application

Centring and NC spot drilling, chamfering, V-groove milling, lathe facing

Execution

Straight shank and clamping surface in accordance with DIN 1835 B
Shaft tolerance h6
clamping screw tightening torque (indexable insert) M4 = 5.2 Nm

Advantage

Cost-effective thanks to the four usable cutting edges
Improved installation position of the reversible tip increases process reliability

Product information

HAHN+KOLB Catalogue

CAD data (available after login)

Certificates/ Documents

Brand	ATORN
Main EAN Code	4050293636970
Manufacturer Part Number	12232715
Max. cutting edge diameter (D max.)	17 mm
Min. cutting edge diameter (D min.)	0.8 mm
Chamfer angle	45 Degree
Clearance length	40 mm
Length	120 mm
Shank diameter	16 mm
Number of cutting edges	1 PCS
Product Group	108
Gross Weight	0.200 kg

Additional accessory:

Product

Description

Quantity

Price per

Price

clamping screw M4 x 9mm

Clamping screw for indexable inserts

Art.-no. 16108129

x 1 Piece
