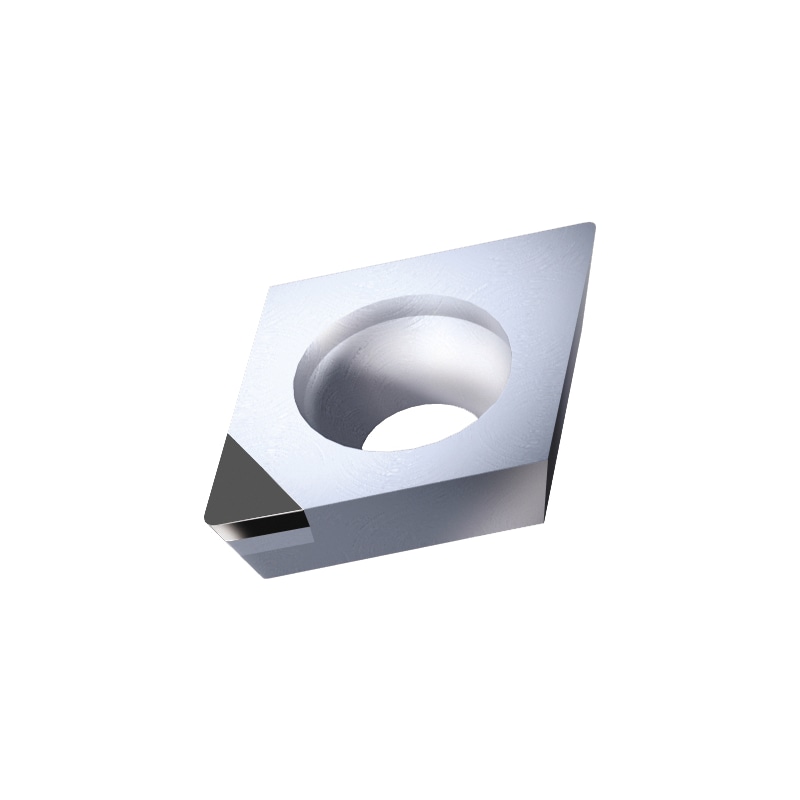

ATORN indexable insert, CBN, uncoated, CCGW 120408 ABC25/D

Name: ATORN indexable insert, CBN, uncoated, CCGW 120408 ABC25/D
Brand: ATORN
SKU: 17871064

Brand: ATORN

All versions

Individual prices for customers after login

Art.-no. 17871064

Quantity

Price per

Piece

You need more information or have not found your desired product?

Application

For longitudinal turning and facing under unfavourable operating conditions at low feed depths in the material groups steel, hardened steel.

Execution

Advantage

Excellent combination of wear-resistance and toughness, optimised for interrupted cut operations

Product information

HAHN+KOLB Catalogue

CAD data (available after login)

Certificates/ Documents

Brand	ATORN
Main EAN Code	4050293397291
Manufacturer Part Number	11430149
Clearance angle of indexable insert ISO	C (7°)
Corner radius of indexable insert ISO	08
ISO-Code Rotating	CCGW 120408
Machining conditions for indexable insert	Good
min./max. ap	0.04-0.25 mm
Design of the chamfer	D (chamfered)
f min./max.	0.06-0.40 mm/r
f min.	0.06 mm/r
max. f	0.40 mm/r
max. ap	0.25 mm
min. ap	0.04 mm
Gross Weight	0.009 kg
