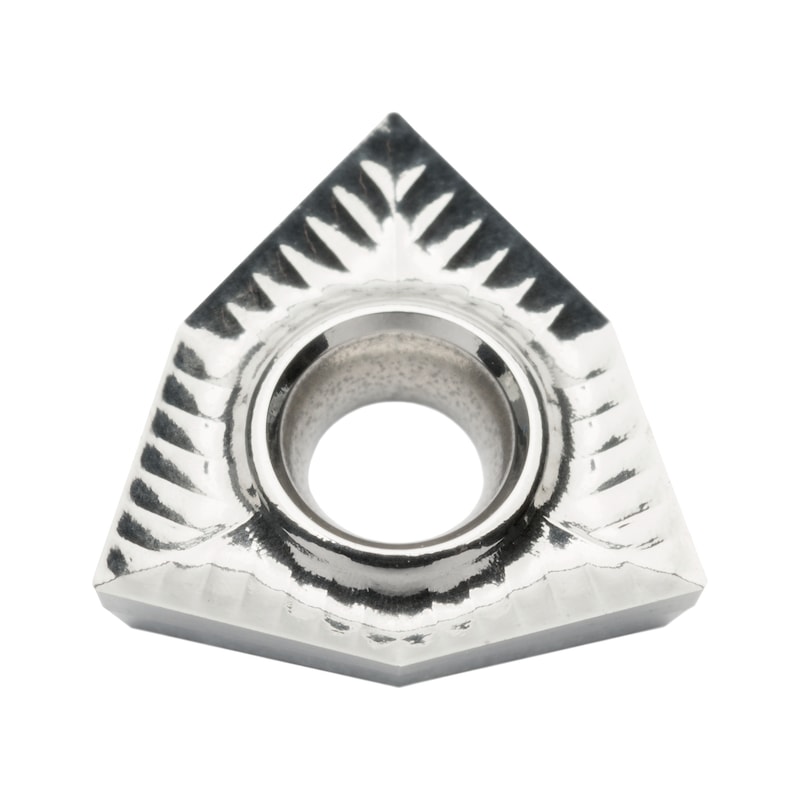

ATORN indexable insert LW610 WCHX040102

Name: ATORN indexable insert LW610 WCHX040102
Brand: ATORN
SKU: 17820600

Brand: ATORN

All versions

Individual prices for customers after login

Art.-no. 17820600

Quantity

Price per

Piece

You need more information or have not found your desired product?

Application

For face and longitudinal turning, drilling, countersinking and chamfering.

Execution

Advantage

Innovative cutting geometry with extra sharp cutters for the process-reliable machining of non-ferrous metals
Very hard substrate ensures long service life
Very good chip breaking by chip breaker

Product information

HAHN+KOLB Catalogue

CAD data (available after login)

Certificates/ Documents

Brand	ATORN
Main EAN Code	4050293427387
Manufacturer Part Number	12230272
ISO name	WCHX040102
Radius	0.2 mm
min./max. ap	1.8-4.0 mm
Carbide type	HW7310
Material to be processed	Non-ferrous metal, Cast metal
Min./max. Vc in non-ferrous metals	200-1000 m/min
Min./max. Vc in cast iron	100-180 m/min
f min./max.	0.01-0.13 mm/r
Number of pieces per packet	10 PCS
Product Group	1FN
Gross Weight	0.001 kg
