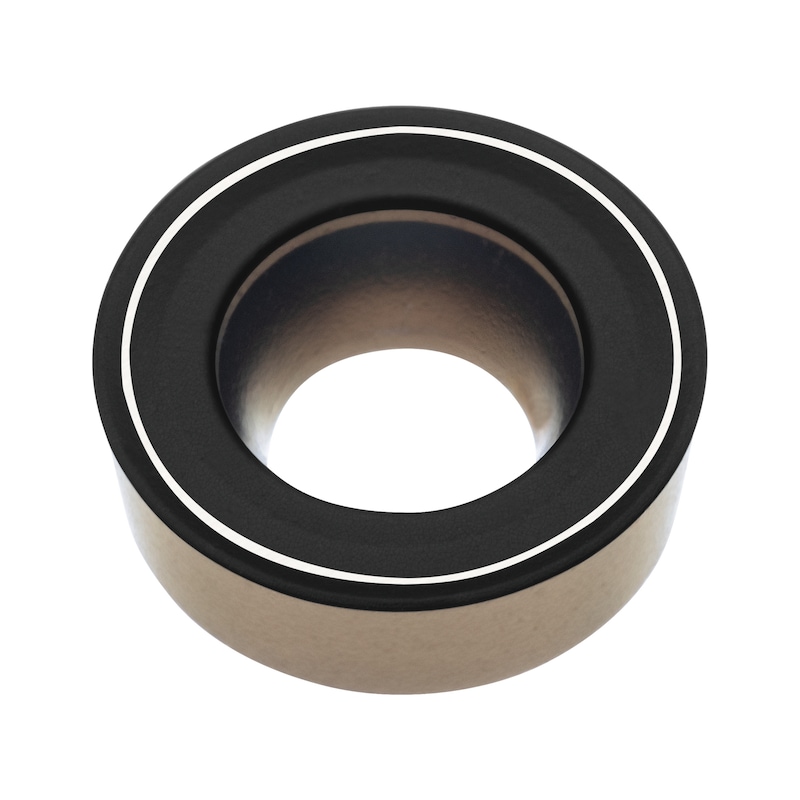

ATORN indexable insert RCMT 0803M0-MP6 ACP15T-1
Brand: ATORN
Art.-no. 17874229
Manufacturer article no. 12350835
EAN 4066107044510
Individual prices for customers after login
Brand | ATORN |
Main EAN Code | 4066107044510 |
Manufacturer Part Number | 12350835 |
Shape of indexable insert ISO | R |
Clearance angle of indexable insert ISO | C |
Tolerance class of indexable insert ISO | M |
Indexable insert type ISO | T |
Size of indexable insert ISO | 08 |
Thickness of indexable insert ISO | 03 |
Corner radius of indexable insert ISO | M0 |
Coating | CVD |
Machining conditions for indexable insert | Good |
Carbide type area ISO | P |
Carbide type ISO | P15 |
Carbide type | ACP15T-1 |
ISO-Code Rotating | RCMT 0803M0 |
Material to be processed | Steel, Cast iron |
min./max. ap | 0.8-3.2 mm |
f min./max. | 0.04-3 mm/r |
f min. | 0.04 mm/r |
max. f | 3 mm/r |
max. ap | 3.2 mm |
min. ap | 0.8 mm |
Chip breaker code | MP6 |
Min./max. Vc in steel | 110-350 m/min |
Harmonized System Code | 82090020 |
Product Group | 1GA |
Gross Weight | 0.001 kg |
