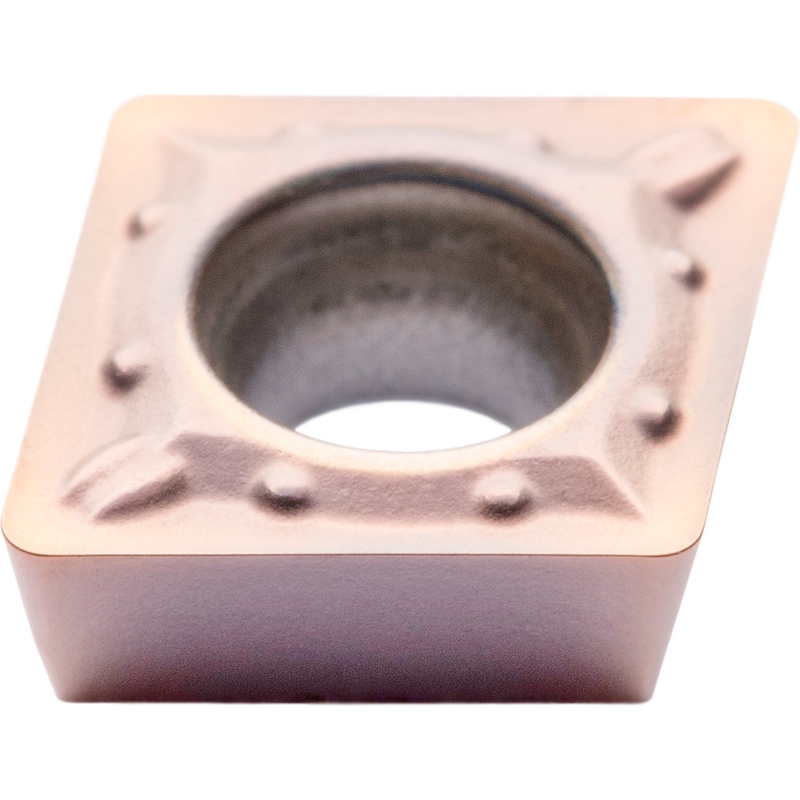

ATORN indexable insert, positive, CPMT 05T104-FP1 HC7625

Brand: ATORN

Art.-no. 17827750

Manufacturer article no. 12230122

EAN 4050293391169


Individual prices for customers after login

You need more information or have not found your desired product?

Application

For longitudinal turning and facing with low cutting depths in moderate cutting conditions

Execution

  • Sintered cemented carbide indexable insert

Advantage

  • Perfect combination of wear resistance and toughness, for high process stability and a wide range of applications
  • Very positive chip breaker for ideal chip breaking at low cutting depths
Product information
CAD data (available after login)

Certificates/ Documents

 |

 |

Brand

ATORN

Main EAN Code

4050293391169

Manufacturer Part Number

12230122

Shape of indexable insert ISO

Rhombus 80°

Clearance angle of indexable insert ISO

P (11°)

Tolerance class of indexable insert ISO

M

Indexable insert type ISO

Type T (with hole, cylindrical + one-sided countersink 40°...60°, one-sided chip breaker)

Size of indexable insert ISO

05

Thickness of indexable insert ISO

T1

Corner radius of indexable insert ISO

04

Coating

CVD

Carbide type area ISO

P

Carbide type ISO

P25

Carbide type

HC7625

ISO-Code Rotating

CPMT 05T104

Material to be processed

Steel
Stainless steel
Cast metal

min./max. ap

0.1-1.5 mm

Materials group

P (primary application)
K (primary application)
M (primary application)

f min./max.

0.05-0.15 mm/r

f min.

0.05 mm/r

max. f

0.15 mm/r

max. ap

1.5 mm

min. ap

0.1 mm

Supply type

Smoothing - Positive chip breaker for low cutting depths

Chip breaker code

FP1

Min./max. Vc in steel

110-220 m/min

Min./max. Vc in cast iron

120-190 m/min

Min./max. Vc in stainless steel

60-120 m/min

Number of pieces per packet

10 PCS

Gross Weight

0.006 kg
