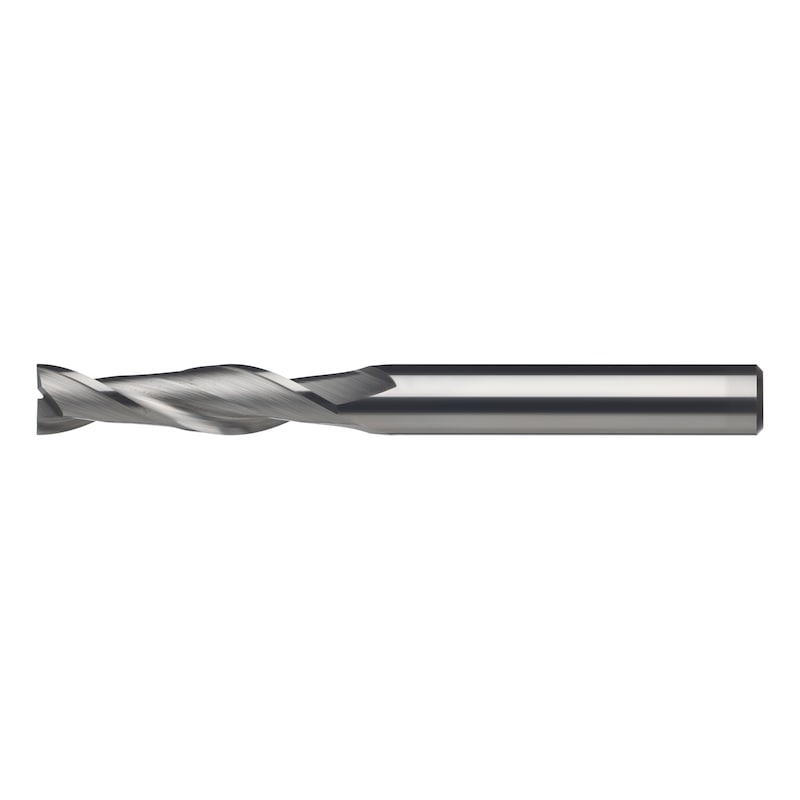

ATORN solid carbide slotting cutter, long, 16.0 mm, 2-cutter, DIN 6535 HA shaft

Name: ATORN solid carbide slotting cutter, long, 16.0 mm, 2-cutter, DIN 6535 HA shaft
Brand: ATORN
SKU: 16750160

Brand: ATORN

Surface: Uncoated

Length: 150 mm

Art.-no. 16750160

Manufacturer article no. 10910598

EAN 4050293090031

All versions

Similar products

Individual prices for customers after login

ATORN solid carbide slotting cutter, long, 16.0 mm, 2-cutter, DIN 6535 HA shaft

Art.-no. 16750160

Quantity

Price per

Piece

You need more information or have not found your desired product?

Login/Register
Call customer service: +33 (0)1 69 19 43 90

Application

Suitable for universal plunge, groove and clearance milling.

Execution

Solid carbide ultra-fine grain
Straight shank pursuant to DIN 6535 HA
Centre cutting

Product information

HAHN+KOLB Catalogue

CAD data (available after login)

Certificates/ Documents

Brand	ATORN
Main EAN Code	4050293090031
Manufacturer Part Number	10910598
Cutting material	SC
Surface	Uncoated
Type	N
Number of cutting edges (Z)	2 PCS
Twist angle	30°
Tool holding device	HA parallel shank
Construction length	Long
Cutting edge diameter	16 mm
Cutting edge length	75 mm
Length	150 mm
Edge protection chamfer length	0.2 mm
Shank diameter	16 mm
fz steel 1000	0.048 mm
Gross Weight	0.300 kg

Material groups for cutting values	Description regarding DIN	Strength Class [N/mm²]	Material No.	Vc [m/min]	fz [mm/T] at diameter	Suitability
1.00 Steels
1.01 Free machining steel	9 S 20	< 900	1.0711	90-100	0.06	⚫
1.02 Structural steel	ST 37-2	<500	1.0037	90-100	0.06	⚫
1.03 Structural steel	ST 60-2	> 500	1.7735	70-90	0.06	⚫
1.04 Heat-treated steel	42 CrMo 4	<1000	1.7225	70-80	0.06	⚫
1.05 Cast iron	GS-45	<1000	1.0446	60-70	0.06	⚫
1.06 Case-hardened steel	16 MnCr 5	<1200	1.7131	55-70	0.06	⚫
1.07 Ferritic/martensitic stainless steel	X 10 Cr 13	<1100	1.4006	40-50	0.06	⚫
1.08 Heat-treated steel	43 CrMo 4	>1000	1.3563	50-60	0.04	⚫
1.09 Nitriding steel	31 CrMoV 9	<1300	1.8519	60-80	0.06	⚫
1.10 Tool steel	X 38 CrMoV 5 1	<1300	1.2343	30-60	0.06	⚫
2.00 Stainless steels
2.01 Austenitic stainless steel	G-X 2 CrNiMo 18 15	<1100	1.3953	40-50	0.04	⚫
3.00 Non-ferrous metals
3.01 Long-chipping aluminium	AI99.9	<500	3.0305	400-500	0.16	⚪
3.02 Short-chipping aluminium	G-AISi12	<500	3.2581	400-500	0.16	⚫
3.03 Copper alloy bronze, long-chipping	CuSn4	<1200	2.1016	100-130	0.1	⚪
3.04 Copper alloy bronze, short-chipping	CuNi12Zn24	<850	2.0730	100-130	0.1	⚫
3.05 Copper alloy brass, long-chipping	Cu Zn 20	<600	2.0250	150-200	0.1	⚪
3.07 Thermoplastic	PVC, Acrylglas	<100		100-120	0.1	⚫
3.07 Thermoplastic	Cu Zn 39 Pb 3	<600	2.0381	140-150	0.1	⚫
3.08 Duroplast	Bakelit, Melamin	<150		100-120	0.1	⚫
3.09 Fibre-reinforced plastics	CFK, GFK	<1500		80-100	0.1
3.10 Graphite	C8000	<60		-
3.11 Composite materials				-
4.00 Cast metal
4.01 Grey cast iron	GG10	<260 HB	0.6010	80-120	0.07	⚫
4.02 Spheroidal graphite iron	GGG 40	<310 HB	0.7040	80-120	0.07	⚫
4.03 Ductile iron	GTW-55	<280 HB	0.8055	80-120	0.07	⚫
5.00 Special alloys
5.01 Titanium alloy	TiAI5Sn2,5	<1200	3.7115	35-50	0.04	⚪
5.02 Nickel-based alloy	NiCr21Mo	<1400	2.4858	30-40	0.04	⚪
5.03 Super alloys	X45CrSi 9 3	<1400	1.4718	30-40	0.04	⚪
6.00 Hard materials
6.01 Hardened steel -55 HRC	x40CrMoV5-1	-55HRC	0.9620	20-40	0.04
6.02 Hardened steel -65 HRC	90MnCrV8	<65HRC		20-40	0.04
