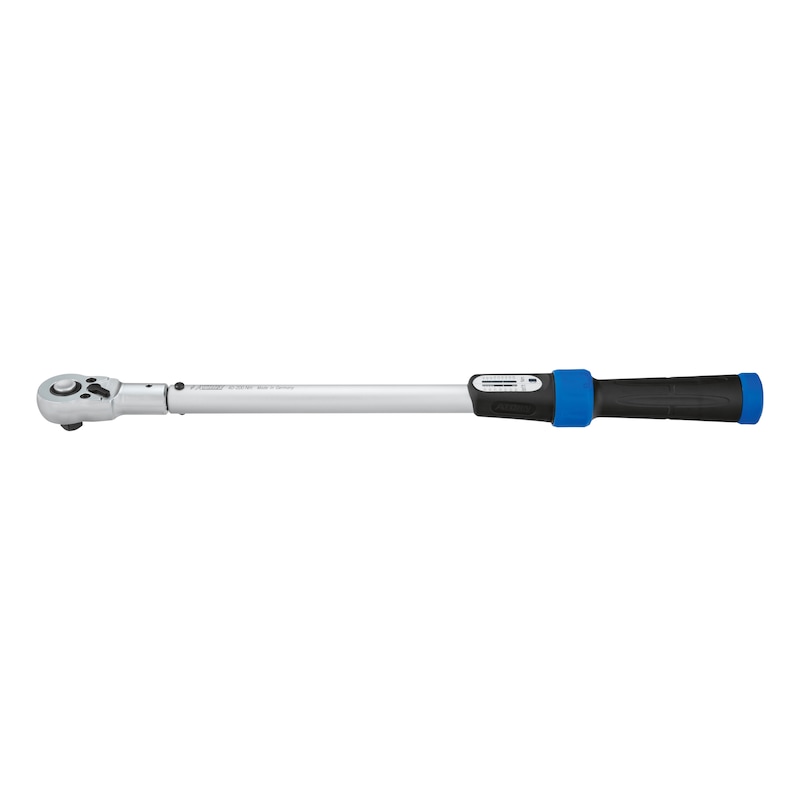

ATORN torque wrench 40-200 Nm with 1/2 inch reversible ratchet
Brand: ATORN
Length: 551 mm
ISO: 6789
Art.-no. 52240200
Manufacturer article no. 50941200
EAN 4050293367584
Individual prices for customers after login
Application
For controlled tightening in a clockwise direction with a high degree of accuracy
Execution
- The torque is set by turning the handle
- With lever reversible ratchet, suitable only for controlled clockwise tightening.
- Haptic and acoustic adjustment aid
- Audible and perceptible release when the set value is reached
- Dual scale with Nm and lbf.ft. display
- Ergonomic handle with comfortable, textured surface
- Rapid securing and opening via the locking ring
Advantage
- Robust tubular design
- Reversible ratchet with locking push button
- Viewing window protects scale from damage
Notes
Supplied with calibration certificate.
Delivery
Secure and safe transport/storage in handy cylindrical package
Brand | ATORN |
Tip size | 1/2 inch |
Min. torque | 40 Nm |
Max. torque | 200 Nm |
Scale value torque | 1 Nm |
Length | 551 mm |
With scale | Yes |
Error limit (%) | 3 |
Calibration certificate | Yes |
ISO | 6789 |
