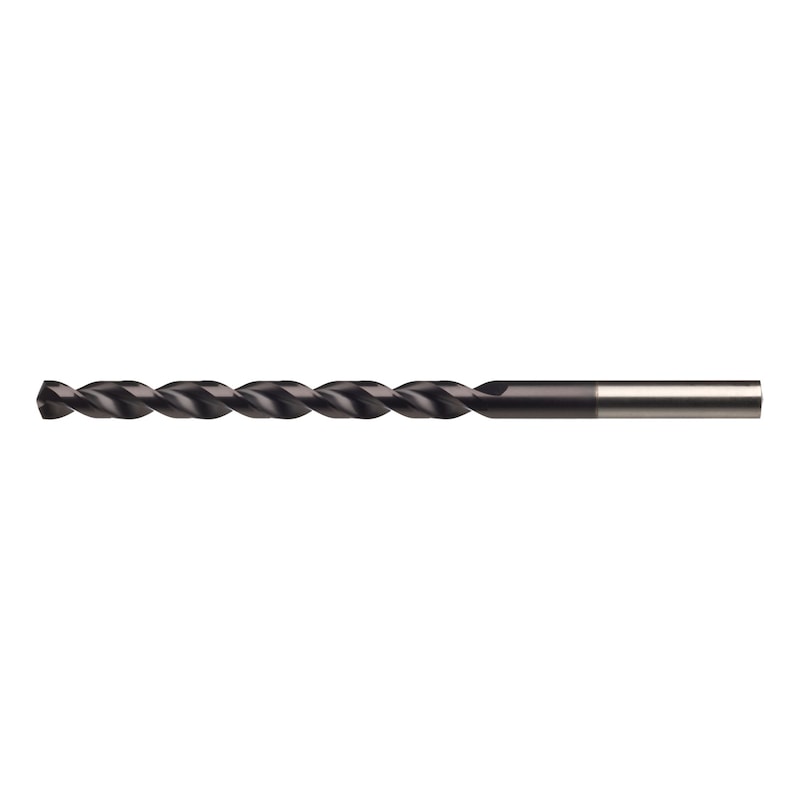

ATORN twist drill TLP HSSE-TiAlN, DIN 340, 7.0 mm x 156 mm x 102 mm, 130°

Name: ATORN twist drill TLP HSSE-TiAlN, DIN 340, 7.0 mm x 156 mm x 102 mm, 130°
Brand: ATORN
SKU: 11060146

Brand: ATORN

Surface: TiAlN

Length: 156 mm

DIN: 340

Art.-no. 11060146

Manufacturer article no. 10472306

EAN 4050293032314

All versions

Similar products

Individual prices for customers after login

ATORN twist drill TLP HSSE-TiAlN, DIN 340, 7.0 mm x 156 mm x 102 mm, 130°

Art.-no. 11060146

Quantity

Price per

Piece

You need more information or have not found your desired product?

Login/Register
Call customer service: +33 (0)1 69 19 43 90

Application

Geometry with deep-hole profile for application up to a strength of 1300 N/mm².

Execution

Twist drill with deep-hole profile

Advantage

Deep-hole profile to optimise chip removal at greater drilling depths without venting
TiAlN coating for increased service life requirements
effective removal of chips thanks to large chipping spaces

Notes

Chamfer-nitrated >2.36

Delivery

Packaging unit: drill Ø 1.0-6.0 mm = 10 pieces (price per piece)

Product information

HAHN+KOLB Catalogue

CAD data (available after login)

Certificates/ Documents

Brand	ATORN
Main EAN Code	4050293032314
Manufacturer Part Number	10472306
Cutting material	HSSE
Surface	TiAlN
Type	TLP
Self-centring	Yes
Tool holding device	HA parallel shank
Cutting edge diameter	7 mm
Angle of the tip	130 Degree
Chip flute length	102 mm
Length	156 mm
f steel 700	0.13 mm/r
DIN	340
Gross Weight	0.012 kg

Material groups for cutting values	Description regarding DIN	Strength Class [N/mm²]	Material No.	Vc [m/min]	f [mm/r] with diameter	Suitability
1.00 Steels
1.01 Free machining steel	9 S 20	< 900	1.0711	35-50	0.06-0.2	⚫
1.02 Structural steel	ST 37-2	<500	1.0037	35-50	0.06-0.2	⚫
1.03 Structural steel	ST 60-2	> 500	1.7735	20-45	0.04-0.15	⚫
1.04 Heat-treated steel	42 CrMo 4	<1000	1.7225	20-27	0.04-0.15	⚫
1.05 Cast iron	GS-45	<1000	1.0446	20-27	0.04-0.15	⚫
1.06 Case-hardened steel	16 MnCr 5	<1200	1.7131	10-27	0.04-0.1	⚫
1.07 Ferritic/martensitic stainless steel	X 10 Cr 13	<1100	1.4006	8-16	0.04-0.1	⚪
1.08 Heat-treated steel	43 CrMo 4	>1000	1.3563	8-17	0.04-0.1	⚫
1.09 Nitriding steel	31 CrMoV 9	<1300	1.8519	8-17	0.04-0.1	⚫
1.10 Tool steel	X 38 CrMoV 5 1	<1300	1.2343	6-13	0.04-0.1	⚫
2.00 Stainless steels
2.01 Austenitic stainless steel	G-X 2 CrNiMo 18 15	<1100	1.3953	12-20	0.04-0.1	⚪
3.00 Non-ferrous metals
3.01 Long-chipping aluminium	AI99.9	<500	3.0305	40-110	0.06-0.2	⚫
3.02 Short-chipping aluminium	G-AISi12	<500	3.2581	30-70	0.06-0.2	⚫
3.03 Copper alloy bronze, long-chipping	CuSn4	<1200	2.1016	15-36	0.04-0.15	⚫
3.04 Copper alloy bronze, short-chipping	CuNi12Zn24	<850	2.0730	30-50	0.04-0.15	⚫
3.05 Copper alloy brass, long-chipping	Cu Zn 20	<600	2.0250	35-60	0.06-0.2	⚫
3.07 Thermoplastic	Cu Zn 39 Pb 3	<600	2.0381	60-110	0.06-0.2	⚫
3.07 Thermoplastic	PVC, Acrylglas	<100		20-45	0.06-0.2	⚪
3.08 Duroplast	Bakelit, Melamin	<150		10-30	0.06-0.2	⚪
3.09 Fibre-reinforced plastics	CFK, GFK	<1500		10-30	0.04-0.1	⚪
3.10 Graphite	C8000	<60		-	-	⚪
3.11 Composite materials				-	-	⚪
4.00 Cast metal
4.01 Grey cast iron	GG10	<260 HB	0.6010	20-32	0.06-0.2	⚫
4.02 Spheroidal graphite iron	GGG 40	<310 HB	0.7040	20-32	0.06-0.2	⚫
4.03 Ductile iron	GTW-55	<280 HB	0.8055	20-32	0.06-0.2	⚫
5.00 Special alloys
5.01 Titanium alloy	TiAI5Sn2,5	<1200	3.7115	4-9	0.04-0.1	⚪
5.02 Nickel-based alloy	NiCr21Mo	<1400	2.4858	4-9	0.04-0.1	⚪
5.03 Super alloys	X45CrSi 9 3	<1400	1.4718	4-9	0.04-0.1	⚪
