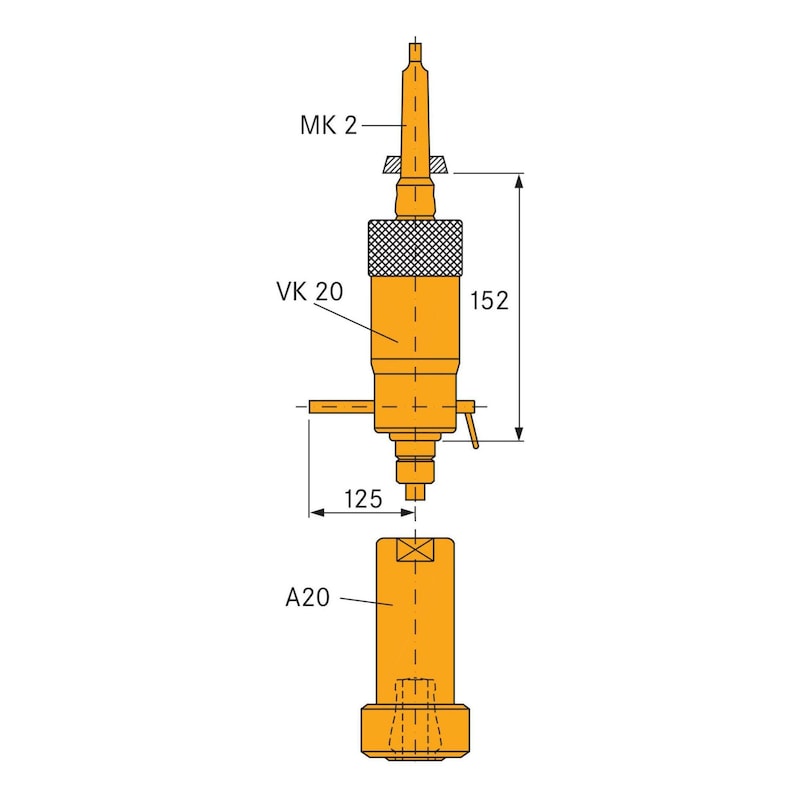

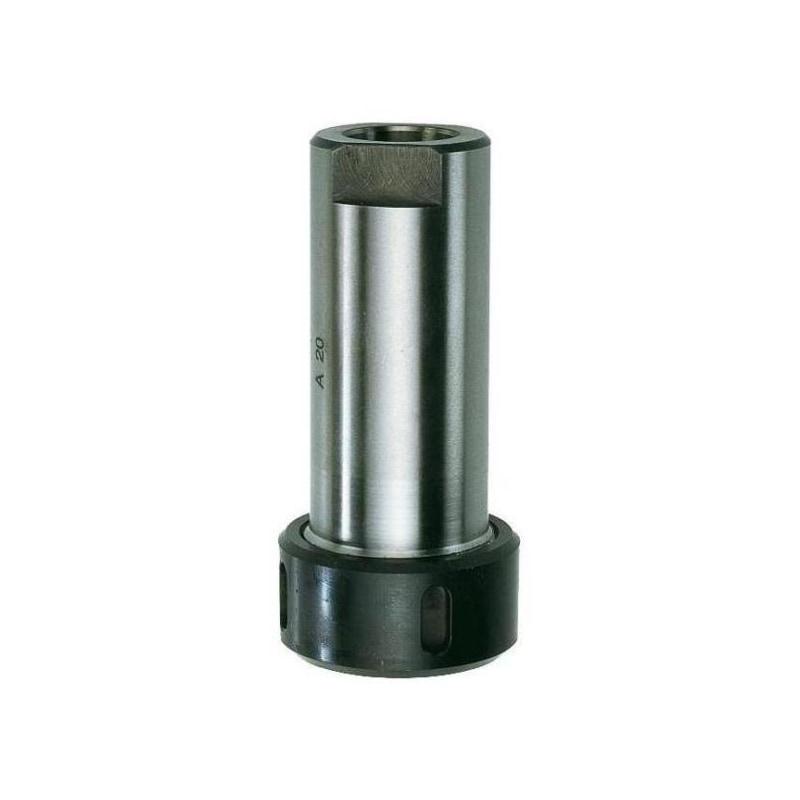

Adapter A20 for adjusting element
Brand: ORION
Art.-no. 69501040
Manufacturer article no. 69501040
EAN 4039247341016
Individual prices for customers after login
Application
For honing small through holes and blind hole bores in a continuous and non-continuous operation. For use on lathes, drills, etc.
Execution

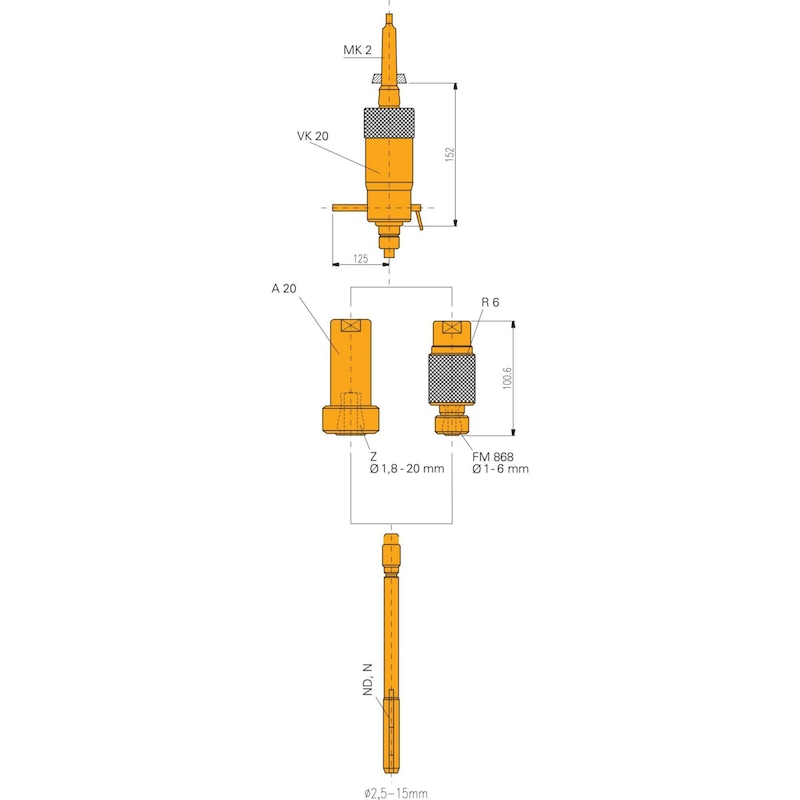

- For use as a system with no. 69501, 69502, 69503 and 69504
Notes
Further information, advice and quotations available on request. Contact us! When placing your order, please specify the diameter and length of the bore as well as the tool length. In order to determine the appropriate stone quality, information is required regarding the material to be processed together with the honing allowance and the required surface quality in µm.
 | |
Brand | ORION |
Main EAN Code | 4039247341016 |
Manufacturer Part Number | 69501040 |
Type description | A 20 |
Number of pieces per packet | 1 PCS |
Harmonized System Code | 84661038 |
Product Group | 686 |
Gross Weight | 0.698 kg |
