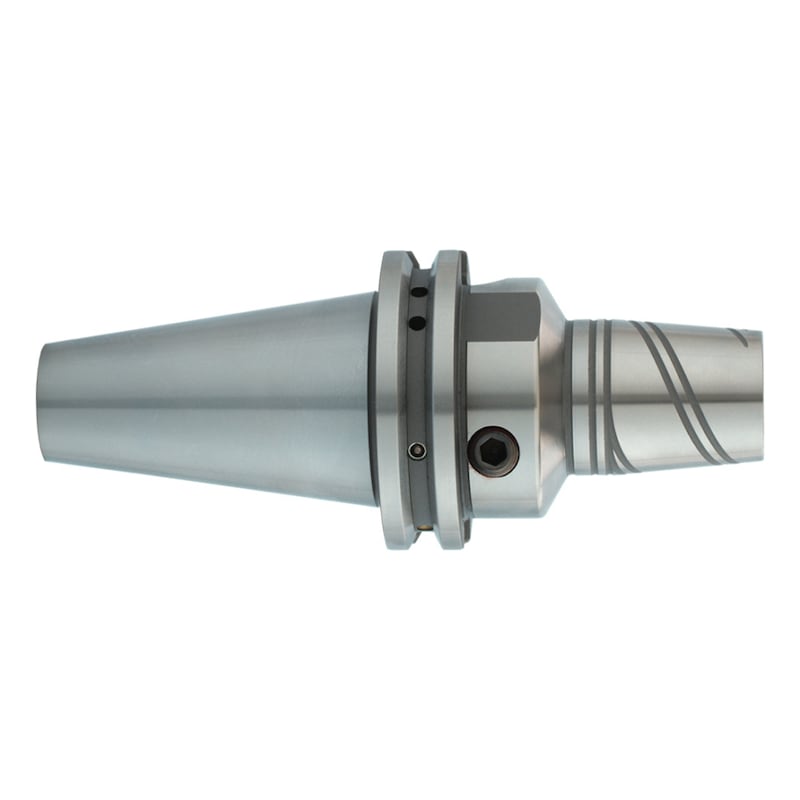

EROGLU SK30 hydraulic expansion chuck
in accordance with ISO 7388-1
You need more information or have not found your desired product?
Products
You need more information or have not found your desired product?
Call customer service: +33 (0)1 69 19 43 90
Application
Accommodates tools with straight shank in accordance with DIN 1835 shape A+B+E and DIN 6535 shape HB+HE
Execution
- Greater than 20 mm dia. with reduction only
- Alloyed case-hardening steel with core tensile strength of at least 950 N/mm²
- Case-hardened HRC 58 ± 2, hardness depth 0.6 mm ± +0.2 mm
- Taper angle tolerance quality AT3 according to DIN 2080
- Taper Ra 0.2 surface quality
- Hole for data carrier DIN 69873 in the flange
- Black oxide surface
Notes
Previous standard DIN69871-1
Delivery
1x SK30 hydraulic expansion chuck, without reducing sleeve
