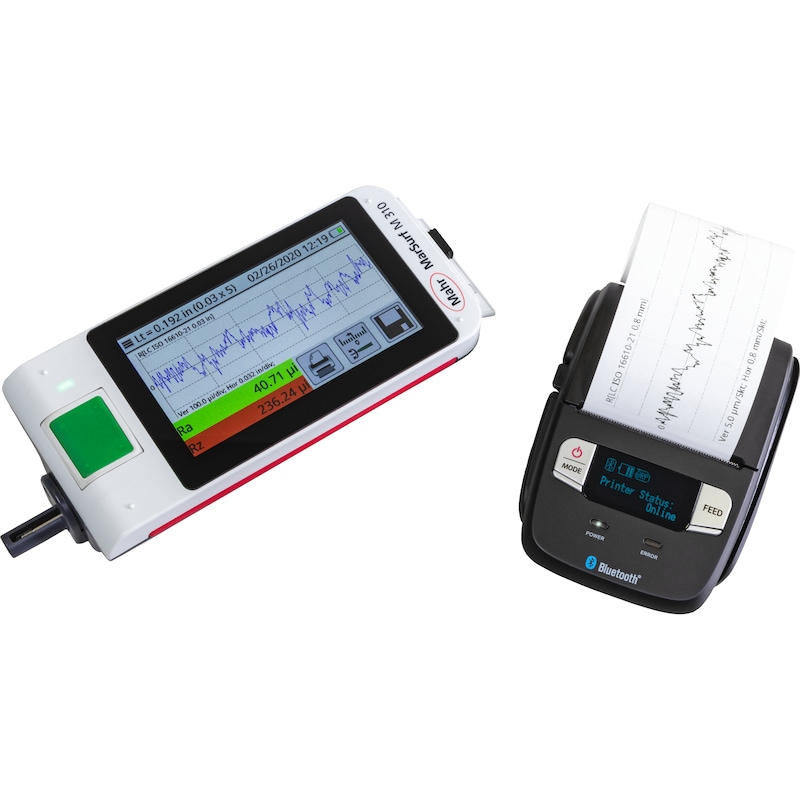

MAHR MarSurf M310 roughness measuring device
including thermal printer with Bluetooth(R) interface
You need more information or have not found your desired product?
Products
You need more information or have not found your desired product?
Call customer service: +33 (0)1 69 19 43 90
Application
Compact, mobile roughness measuring device for standardised roughness measurement in production and measuring rooms.
Execution
- 4.3 inch TFT touch display, colour, backlit
- Stylus instrument with feed unit for skid-type probe
- Status indicated by LED light bar
- inductive skid-type probe with 2 µm diamond probe tip
- integrated calibration standard
- USB Bluetooth(R) interface, e.g. for printer
- Roughness parameters in line with DIN ISO, JIS and ASME
- MarWin Explorer software for easy analysis (free version can be downloaded from the MAHR website)
- Data backup as TXT, X3P, CSV and PDF file
- Including thermal printer for wireless printing of profiles and results via Bluetooth(R) or cable connection
Advantage
- simple and intuitive operation, no training required
- dynamic calibration function enables reliable measurement through automatic cut-off selection (patented)
- Measurement results transferred via Bluetooth(R) or cable connection
- Quick access to individually used functions via favourites list in the display
- Tolerance input and monitoring
