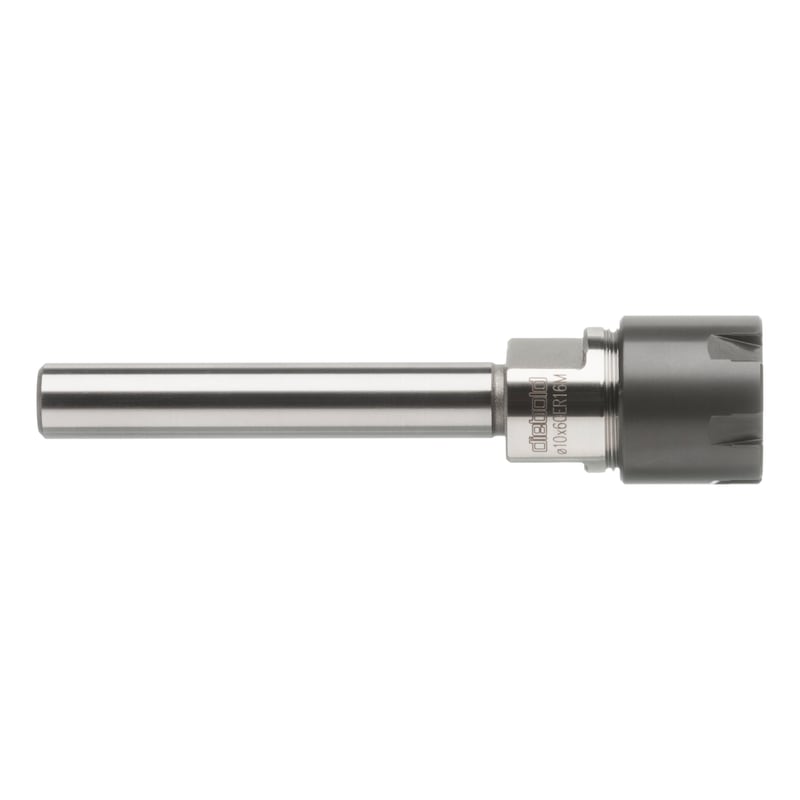

DIEBOLD chuck extension ER 16-10 x 60 mm Mini
Brand: DIEBOLD
Art.-no. 23304005
Manufacturer article no. 74.020.005
Individual prices for customers after login
Application
For clamping tools with straight shank.
Execution
- With straight shank, type ER Mini.
- Particularly slim version for use in milling chucks as tool extension for deep machining operations where space is restricted.
- Straight shank made of solid material.
- Hollow bored for internal cooling.
Notes
Mini ring profile key, no. 23308. Suitable collets, no. 23320.
Delivery
1x collet chuck extension.

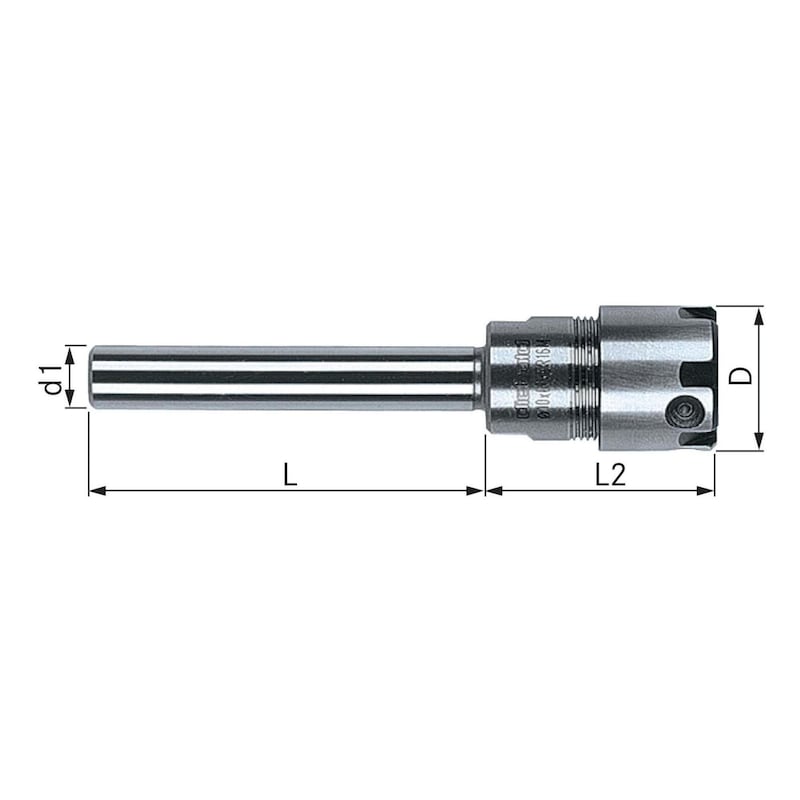

Brand | DIEBOLD |
Manufacturer Part Number | 74.020.005 |
Collet type | ER 16 |
Shank diameter (d1) | 10 mm |
Min./max. clamping range | 0.5-10 mm |
Outer diameter (D) | 22 mm |
Shaft length (L) | 60 mm |
Length of head (L2) | 38 mm |
Product Group | 2AB |
Gross Weight | 0.045 kg |
