EROGLU blank SK50-97-315 - SK50 blanks EROGLU blank SK50-97-315 - SK50 blanks
EROGLU blank SK50-97-315 - SK50 blanks - 1
EROGLU blank SK50-97-315 - SK50 blanks - 2
EROGLU

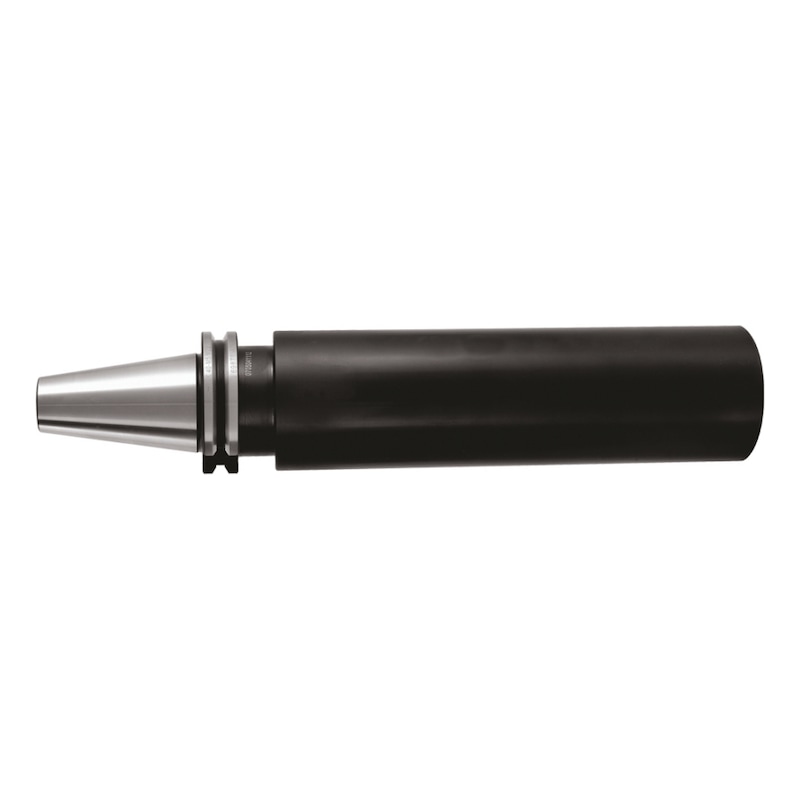

EROGLU blank SK50-97-315

Brand: EROGLU

Art.-no. 23151859

Manufacturer article no. 502.17.97.315

EAN 4250122606642

All versions


Individual prices for customers after login

You need more information or have not found your desired product?

Application

For the production of special tools

Execution

  • Steep taper and flange hardened and ground
  • Soft shank for further machining
  • Alloyed case-hardening steel with core tensile strength of at least 950 N/mm²
  • Case-hardened HRC 58 ± 2, hardness depth 0.6 mm ± +0.2 mm
  • Taper angle tolerance quality AT3 according to DIN 2080
  • Taper Ra 0.2 surface quality
  • Hole for data carrier DIN 69873 in the flange
  • Black oxide surface

Notes

Previous standard DIN69871-1

Delivery

1x SK50 blank

Product information

HAHN+KOLB Catalogue

CAD data (available after login)

Certificates/ Documents

 |

 |

Brand

EROGLU

Main EAN Code

4250122606642

Manufacturer Part Number

502.17.97.315

Tool holding device

SK 50

Tool holding device type

Blank

Form

A

Projecting length (A)

315 mm

Diameter 2 (D)

97 mm

Collar diameter

97.5 mm

Coolant supply

No

Harmonized System Code

84661020

Gross Weight

19.400 kg
