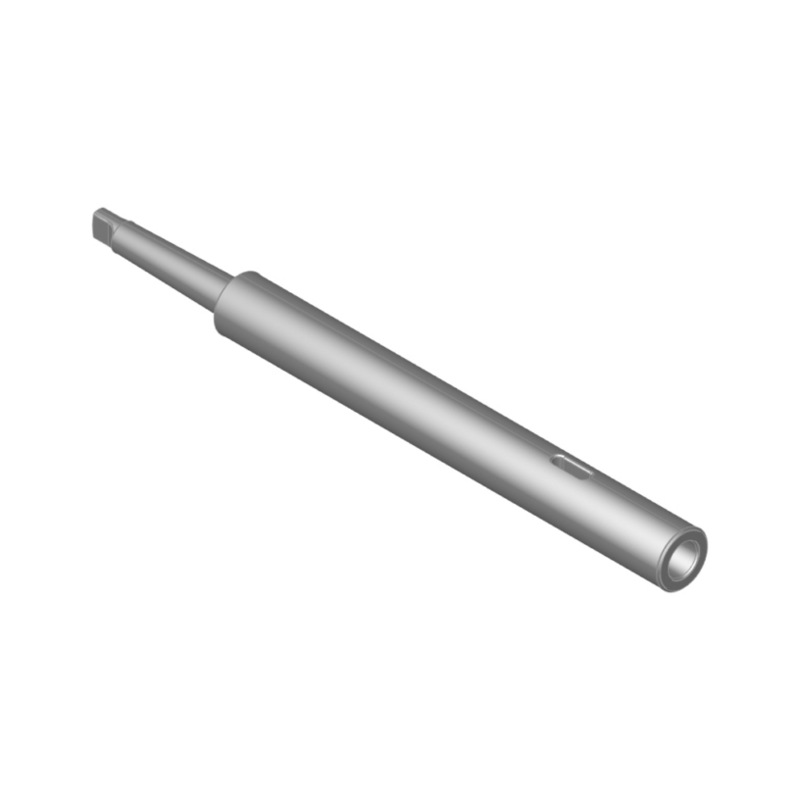

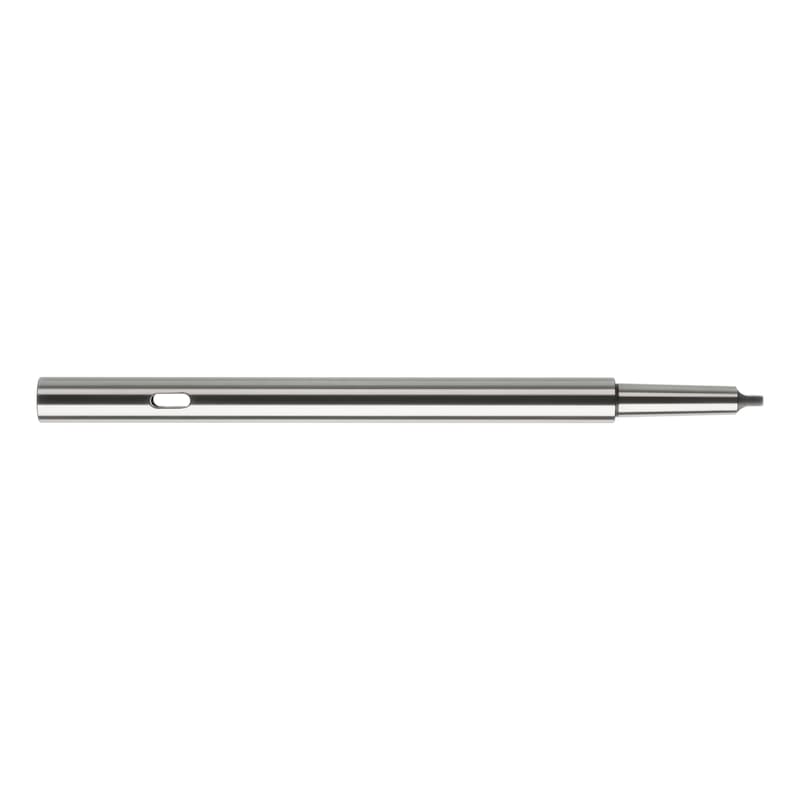

Extension sleeve MK 2/2 350 mm
Brand: ORION
Length: 350 mm
DIN: 228-1
Art.-no. 21107235
Manufacturer article no. 21107235
EAN 4039247542994
Individual prices for customers after login
Application
For extending drill bits and reamers.
Execution
- Internal and external taper in accordance with DIN 2185.
- Ground external taper.
Advantage
- Maximum concentricity.
Delivery
1x MK extension sleeve.
 | |
Brand | ORION |
Main EAN Code | 4039247542994 |
Manufacturer Part Number | 21107235 |
Mount, on machine side | MK 2 |
Mount, on tool side | MK 2 |

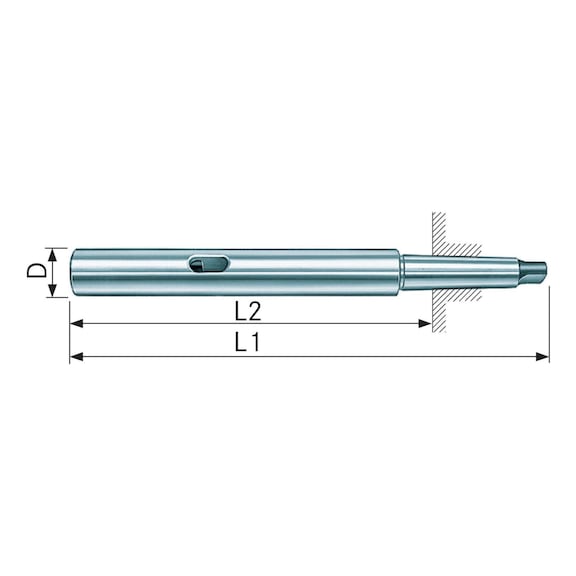

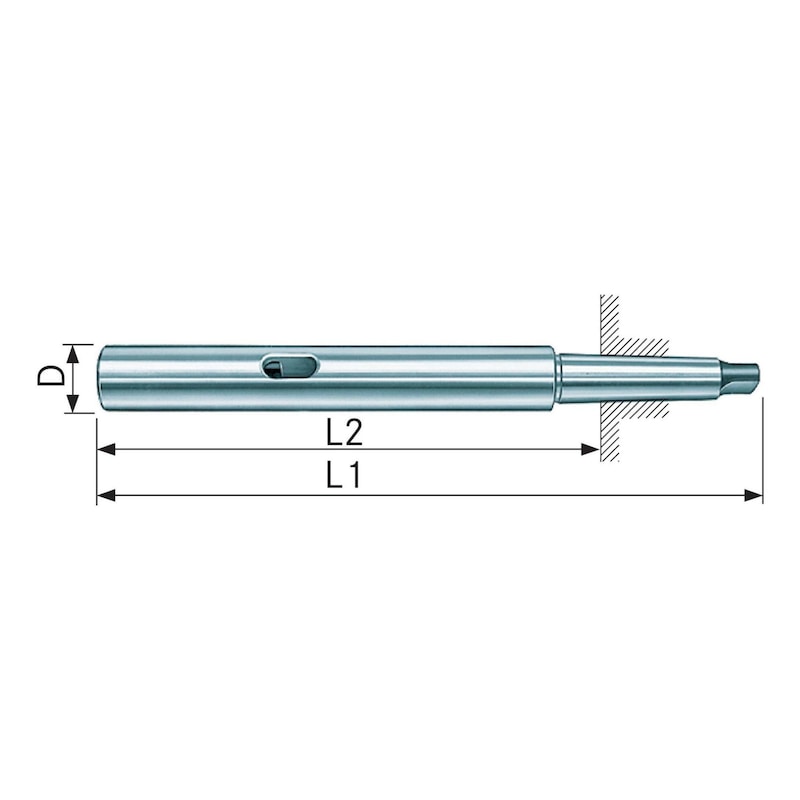

Projecting length (Auskraglänge L 2) | 275 mm |
Cylinder diameter (Zylinderdurchmesser D) | 25 mm |
Length (Länge L 1) | 350 mm |
DIN | 228-1 |
Harmonized System Code | 84661020 |
Gross Weight | 1.040 kg |
