KEMMLER CNC drill chuck VDI40 2.5-16 mm

Brand: KEMMLER

Art.-no. 22740066

Manufacturer article no. 409.15.16


Individual prices for customers after login

You need more information or have not found your desired product?

Application

To accommodate tools with a straight shank

Execution

  • Alloyed case-hardening steel with a core tensile strength of at least 950 N/mm²
  • Case-hardened, HRC 60 ± 2 (HV 700 ± 50)
  • Hardness depth 0.8 mm ±0.2 mm
  • black-oxide and precision-ground finish
  • With internal coolant supply or with threaded connection for external coolant supply
  • High precision and concentricity of ≤ 0.03 mm. Secure clamping of the tool due to mechanical increase in clamping force
  • No automatic release of the clamping during machining with anti-clockwise or clockwise rotation. Clamping and releasing via hex key

Notes

Previous standard DIN 69880/VDI 3525

Delivery

1x VDI CNC drill chuck; without chuck wrench

Product information

Certificates/ Documents

 |

 |

Brand

KEMMLER

Manufacturer Part Number

409.15.16

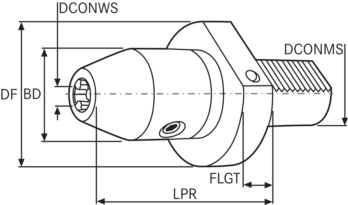

VDI mount diameter (DCONMS)

40

Min./max. clamping range (DCONWS)

2.5-16 mm

Diameter 3 (BD)

50 mm

Collar diameter (DF)

83 mm

Holder width (LPR)

98 mm

Collar height (FLGT)

22 mm

Harmonized System Code

84661020

Gross Weight

2.600 kg
