KEMMLER adapter sleeve VDI16 shape F1 MK1
Brand: KEMMLER
Art.-no. 22740036
Manufacturer article no. 169.07.01
Individual prices for customers after login
Application
To accommodate tools with a Morse taper shank and flat tangs in accordance with DIN 228-1 shape B
Execution
- Alloyed case-hardening steel with a core tensile strength of at least 950 N/mm²
- Case-hardened, HRC 60 ± 2 (HV 700 ± 50)
- Hardness depth 0.8 mm ±0.2 mm
- black-oxide and precision-ground finish
- With internal coolant supply or with threaded connection for external coolant supply
- With adjustable ball spray nozzles
- 30, 40 and 50 are supplied with a ball spray nozzle.
Notes
Previous standard DIN 69880/VDI 3525
Delivery
1x VDI adapter sleeve shape F1
Brand | KEMMLER |
Manufacturer Part Number | 169.07.01 |

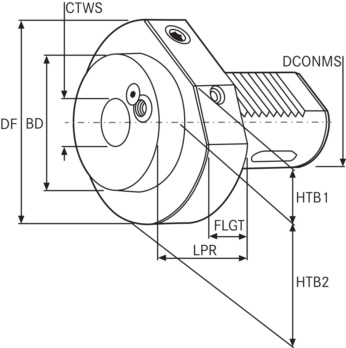

VDI mount diameter (DCONMS) | 16 |
Type | F1 |
Morse taper size (CTWS) | MK 1 |
Diameter 3 (BD) | 32 mm |
Collar diameter (DF) | 40 mm |
Holder width (LPR) | 32 mm |
Collar height (FLGT) | 13 mm |
Height (HTB1) | 18 mm |
Height 2 (HTB2) | 18 mm |
Harmonized System Code | 84661020 |
Gross Weight | 0.400 kg |
