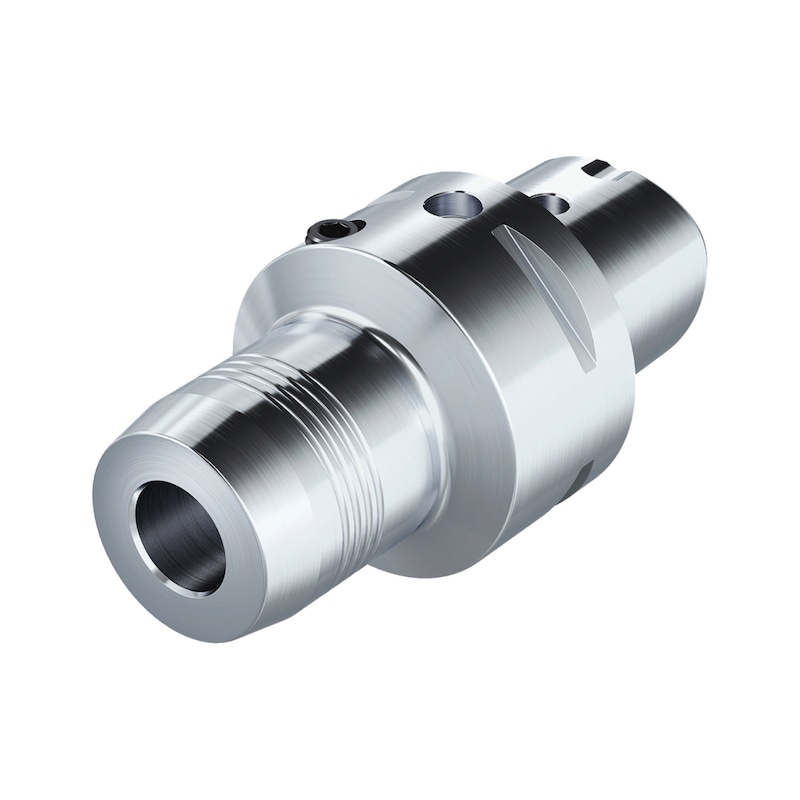

KEMMLER hydraulic expansion chuck PSK 40, diameter 12 mm, projection 70 mm
Brand: KEMMLER
Art.-no. 23106108
Manufacturer article no. C4.H12
Individual prices for customers after login
Application
Accommodates tools with straight shank in accordance with DIN 1835 shape A+B+E and DIN 6535 shape HB+HE
Execution
- All tapers and tolerances are precision-ground.
Delivery
1x PSK hydraulic expansion chuck without chuck wrench
 | |
Brand | KEMMLER |
Tool holding device | PSC 40 |
Tool holding device type | Hydraulic expansion chuck |
Manufacturer Part Number | C4.H12 |

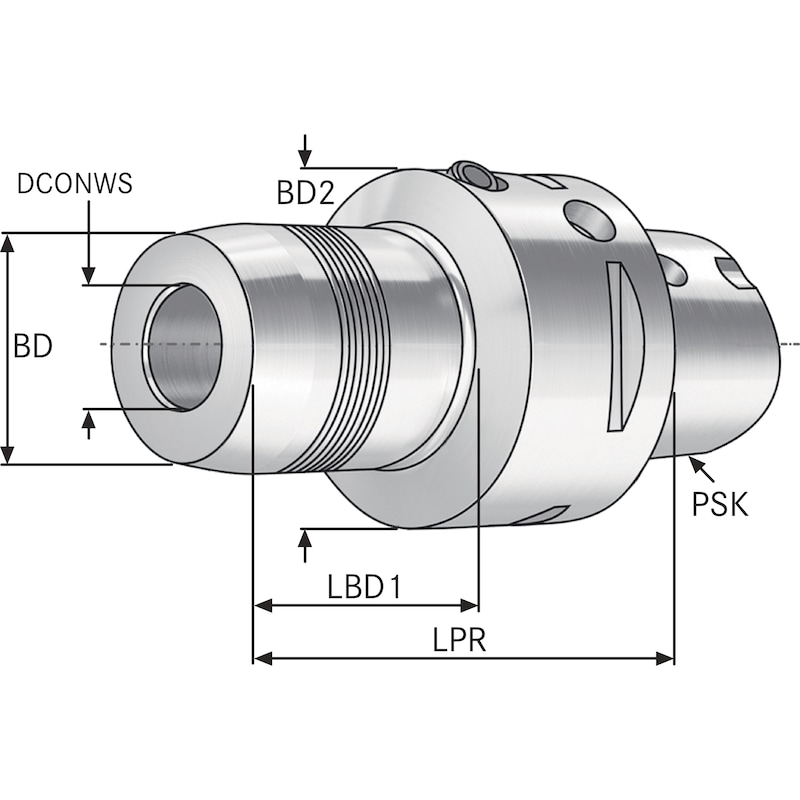

Diameter | 12 mm |
Thread dimension | M8 x 1 |
Projecting length | 70 mm |
Diameter 2 | 32 mm |
Collar diameter | 40 mm |
Coolant supply | Internal axial |
Balancing quality | G 2.5 at 25,000 rpm |
Gross Weight | 1.300 kg |
