ORION Morse taper shape F VDI 40 MK2 with flat tangs DIN 69880-1 - Morse taper mount shape F with flat tangs ORION Morse taper shape F VDI 40 MK2 with flat tangs DIN 69880-1 - Morse taper mount shape F with flat tangs

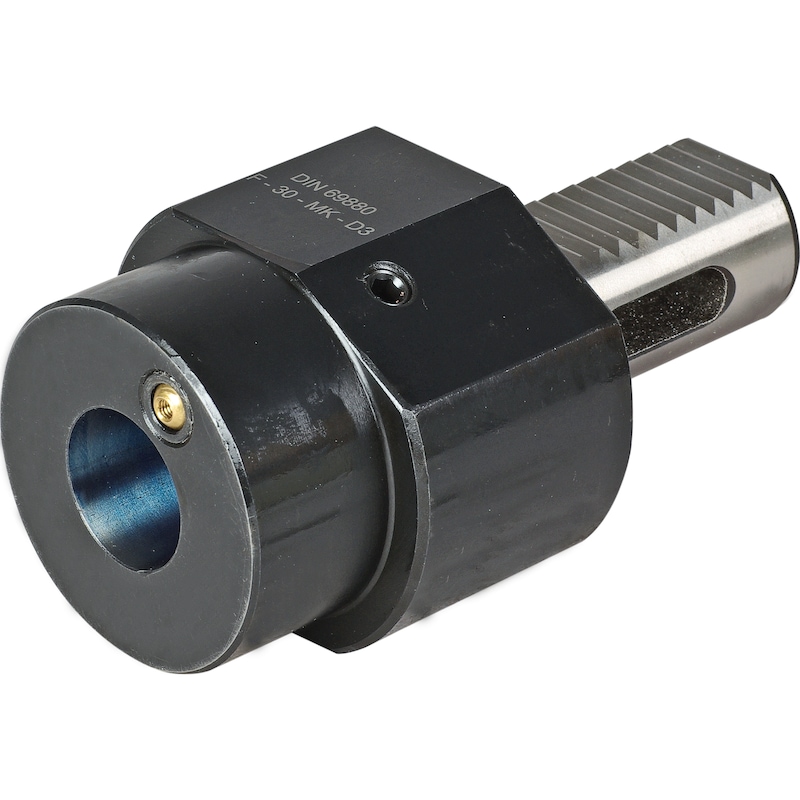

ORION Morse taper shape F VDI 40 MK2 with flat tangs DIN 69880-1 - Morse taper mount shape F with flat tangs - 1
ORION Morse taper shape F VDI 40 MK2 with flat tangs DIN 69880-1 - Morse taper mount shape F with flat tangs - 2
ORION

ORION Morse taper shape F VDI 40 MK2 with flat tangs DIN 69880-1

Brand: ORION

Length: 36 mm

Art.-no. 22778175

Manufacturer article no. 22778175

EAN 4053625465620

All versions


Individual prices for customers after login

You need more information or have not found your desired product?

Execution

  • Surface hardness 58–60 HRc
  • Core strength HV 950 N/mm2
  • Hardness depth 0.8 mm ±0.2 mm
  • Fully bronzed and precision-ground
Product information

HAHN+KOLB Catalogue

CAD data (available after login)

Certificates/ Documents

 |

 |

Brand

ORION

Main EAN Code

4053625465620

Manufacturer Part Number

22778175

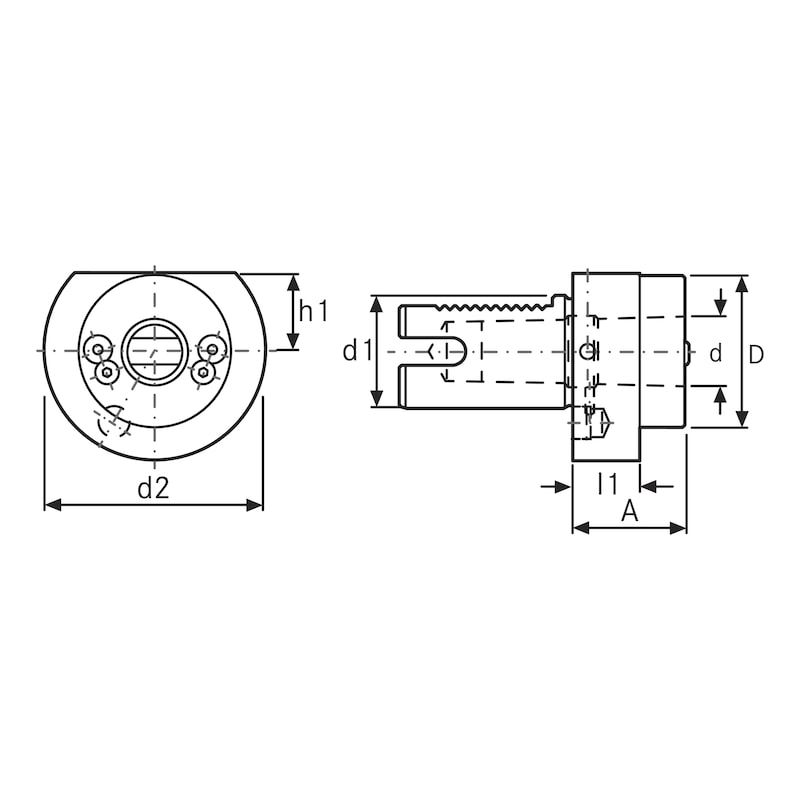

VDI mount diameter (VDI Aufnahmedurchmesser d1)

40 mm

Morse taper size

MK 2

Diameter (d)

17.78 mm

Projecting length (A)

22 mm

Outer diameter (D)

55 mm

Collar diameter (d2)

83 mm

Height (h1)

32.5 mm

Length (l2)

36 mm

Harmonized System Code

84661031

Gross Weight

1.582 kg
