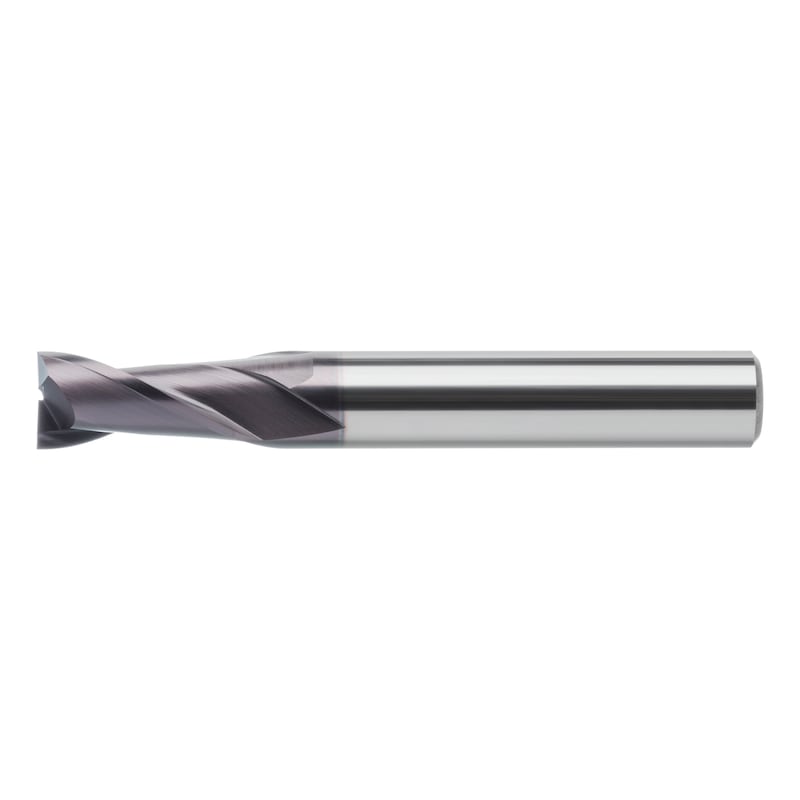

ORION SC end mill teeth=2 TiAlN diameter 8.0x16x63mm 30 degrees HA shaft
Brand: ORION
Surface: TiAlN
Length: 63 mm
Art.-no. 16716080
Manufacturer article no. 16716080
EAN 4053625349692
Individual prices for customers after login
Application
Suitable for universal plunge, groove and clearance milling.
Execution
- Solid carbide ultra-fine grain
- TiAIN-coated

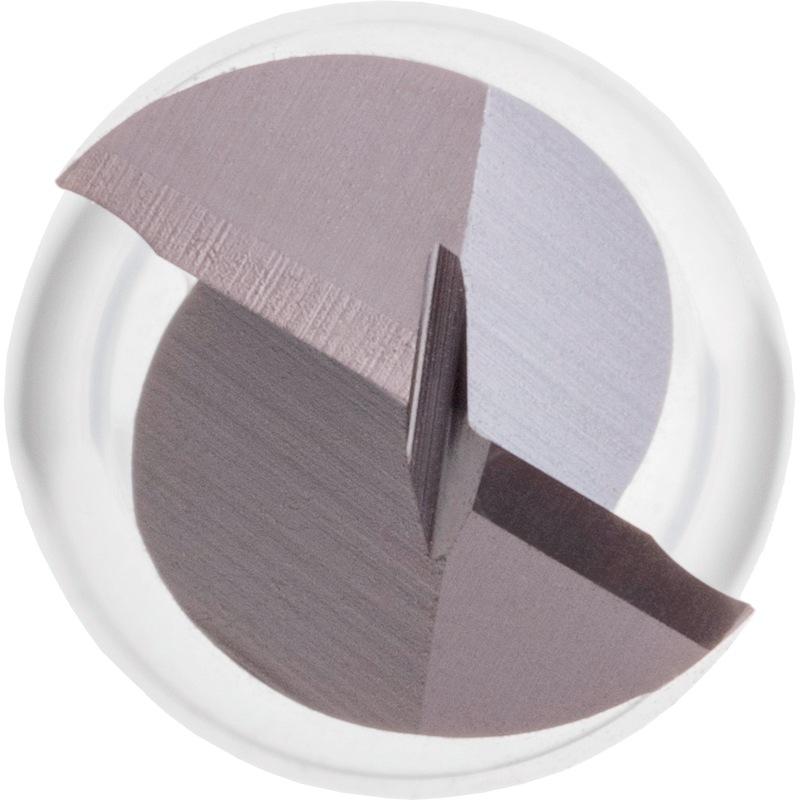

- Centre cutting
- With edge protection chamfer
- Straight shank pursuant to DIN 6535 HA
Brand | ORION |
Main EAN Code | 4053625349692 |
Manufacturer Part Number | 16716080 |
Cutting material | SC |
Surface | TiAlN |
Type | N |
Number of cutting edges (Z) | 2 PCS |
Twist angle | 30° |
Tool holding device | HA parallel shank |
Construction length | Normal |
Cutting edge diameter | 8 mm |
Cutting edge length | 16 mm |
Length | 63 mm |
Edge protection chamfer length | 0.1 mm |
Shank diameter | 8 mm |
fz steel 1000 | 0.07 mm |
Gross Weight | 0.041 kg |
| Material groups for cutting values | Description regarding DIN | Strength Class [N/mm²] | Material No. | Vc [m/min] | fz [mm/T] at diameter | Suitability |
|---|---|---|---|---|---|---|
| 1.00 Steels | ||||||
| 1.01 Free machining steel | 9 S 20 | < 900 | 1.0711 | 80-100 | 0.02 | ⚫ |
| 1.02 Structural steel | ST 37-2 | <500 | 1.0037 | 85-105 | 0.03 | ⚫ |
| 1.03 Structural steel | ST 60-2 | > 500 | 1.7735 | 85-105 | 0.02 | ⚫ |
| 1.04 Heat-treated steel | 42 CrMo 4 | <1000 | 1.7225 | 75-95 | 0.03 | ⚫ |
| 1.05 Cast iron | GS-45 | <1000 | 1.0446 | 75-95 | 0.02 | ⚫ |
| 1.06 Case-hardened steel | 16 MnCr 5 | <1200 | 1.7131 | 55-70 | 0.03 | ⚫ |
| 1.07 Ferritic/martensitic stainless steel | X 10 Cr 13 | <1100 | 1.4006 | 45-55 | 0.03 | ⚫ |
| 1.08 Heat-treated steel | 43 CrMo 4 | >1000 | 1.3563 | 65-80 | 0.03 | ⚫ |
| 1.09 Nitriding steel | 31 CrMoV 9 | <1300 | 1.8519 | 75-94 | 0.015 | ⚫ |
| 1.10 Tool steel | X 38 CrMoV 5 1 | <1300 | 1.2343 | 65-80 | 0.015 | ⚫ |
| 2.00 Stainless steels | ||||||
| 2.01 Austenitic stainless steel | G-X 2 CrNiMo 18 15 | <1100 | 1.3953 | 40-50 | 0.015 | ⚫ |
| 3.00 Non-ferrous metals | ||||||
| 3.01 Long-chipping aluminium | AI99.9 | <500 | 3.0305 | 405-495 | 0.03 | ⚪ |
| 3.02 Short-chipping aluminium | G-AISi12 | <500 | 3.2581 | 495-605 | 0.03 | ⚫ |
| 3.03 Copper alloy bronze, long-chipping | CuSn4 | <1200 | 2.1016 | 65-80 | 0.015 | ⚪ |
| 3.04 Copper alloy bronze, short-chipping | CuNi12Zn24 | <850 | 2.0730 | 75-90 | 0.02 | ⚫ |
| 3.05 Copper alloy brass, long-chipping | Cu Zn 20 | <600 | 2.0250 | 80-100 | 0.03 | ⚪ |
| 3.07 Thermoplastic | PVC, Acrylglas | <100 | 100-120 | 0.015 | ⚫ | |
| 3.07 Thermoplastic | Cu Zn 39 Pb 3 | <600 | 2.0381 | 90-110 | 0.03 | ⚫ |
| 3.08 Duroplast | Bakelit, Melamin | <150 | 110-130 | 0.015 | ⚫ | |
| 4.00 Cast metal | ||||||
| 4.01 Grey cast iron | GG10 | <260 HB | 0.6010 | 110-130 | 0.02 | ⚫ |
| 4.02 Spheroidal graphite iron | GGG 40 | <310 HB | 0.7040 | 100-120 | 0.015 | ⚫ |
| 4.03 Ductile iron | GTW-55 | <280 HB | 0.8055 | 90-110 | 0.02 | ⚫ |
| 5.00 Special alloys | ||||||
| 5.01 Titanium alloy | TiAI5Sn2,5 | <1200 | 3.7115 | 45-55 | 0.015 | ⚪ |
| 5.02 Nickel-based alloy | NiCr21Mo | <1400 | 2.4858 | 30-40 | 0.015 | ⚪ |
| 5.03 Super alloys | X45CrSi 9 3 | <1400 | 1.4718 | 30-40 | 0.015 | ⚪ |
