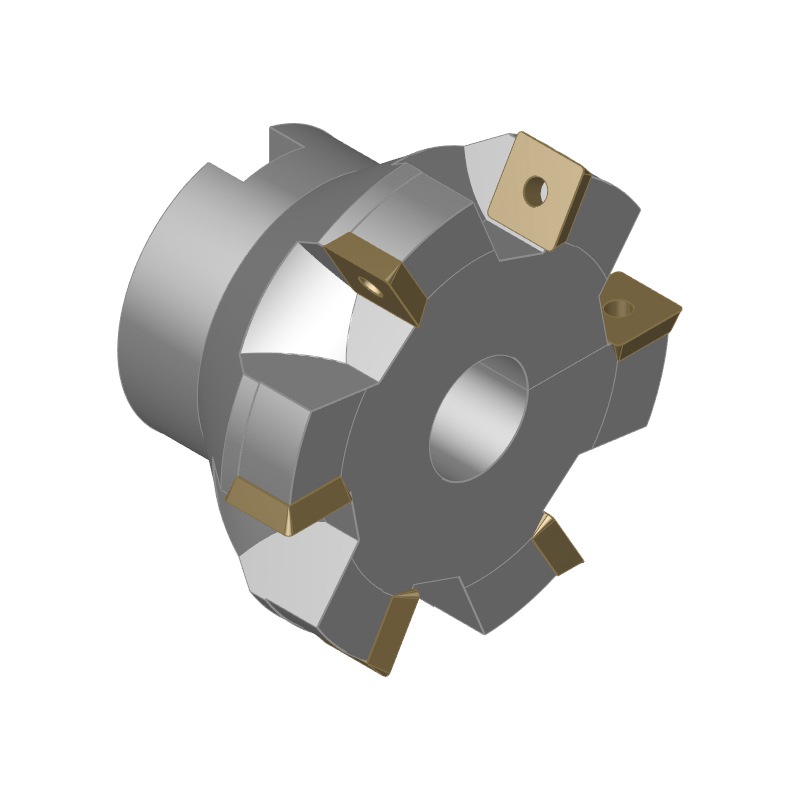

ORION angular face milling head, 90 deg., D=80.0 for ind. inserts SEET120308 T=6 - Angular milling cutter 90°

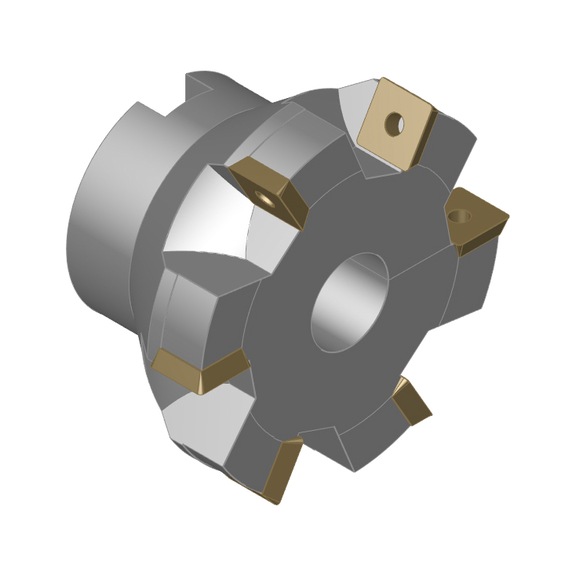

ORION angular face milling head, 90 deg., D=80.0 for ind. inserts SEET120308 T=6 - Angular milling cutter 90° - 1

ORION angular face milling head, 90 deg., D=80.0 for ind. inserts SEET120308 T=6

Name: ORION angular face milling head, 90 deg., D=80.0 for ind. inserts SEET120308 T=6
Brand: ORION
SKU: 16004003

Brand: ORION

Length: 50 mm

Art.-no. 16004003

Manufacturer article no. 16004003

EAN 4039247601387

All versions

Similar products

Individual prices for customers after login

ORION angular face milling head, 90 deg., D=80.0 for ind. inserts SEET120308 T=6

Art.-no. 16004003

Quantity

Price per

Piece

You need more information or have not found your desired product?

Login/Register
Call customer service: +33 (0)1 69 19 43 90

Application

Universal use for exact 90° cuts.

Execution

Wear-resistant, nickel-plated version
Precision supports ensure insert fits perfectly
Unequal division for excellent smooth running
Clamping screw tightening torque (indexable insert) M3.5 = 3.5 Nm

Advantage

Low-vibration running
Nickel-plated for long service life
Very high surface quality
Excellent value for money

Product information

HAHN+KOLB Catalogue

CAD data (available after login)

Certificates/ Documents

Brand	ORION
Main EAN Code	4039247601387
Manufacturer Part Number	16004003
Cutting edge diameter (D)	80 mm
Length (L1)	50 mm
Bore diameter (d)	27 mm
max. ap	11.4 mm
Number of cutting edges	6 PCS
Harmonized System Code	82077031
Gross Weight	1.372 kg

Additional accessory:

Product

Description

Quantity

Price per

Price

ORION clamping screw M3.5 x 10 mm

Clamping screw for indexable inserts

ORION

Art.-no. 16108163

x 1 Piece

ORION shim for indexable insert angular face milling head 90 degrees 16004

Shim for indexable inserts

ORION

Art.-no. 16108167

x 1 Piece

ORION clamping screw M5 x 7mm for 90-degree angular face milling head

Clamping screw for shims

ORION

Art.-no. 16108168

x 1 Piece
