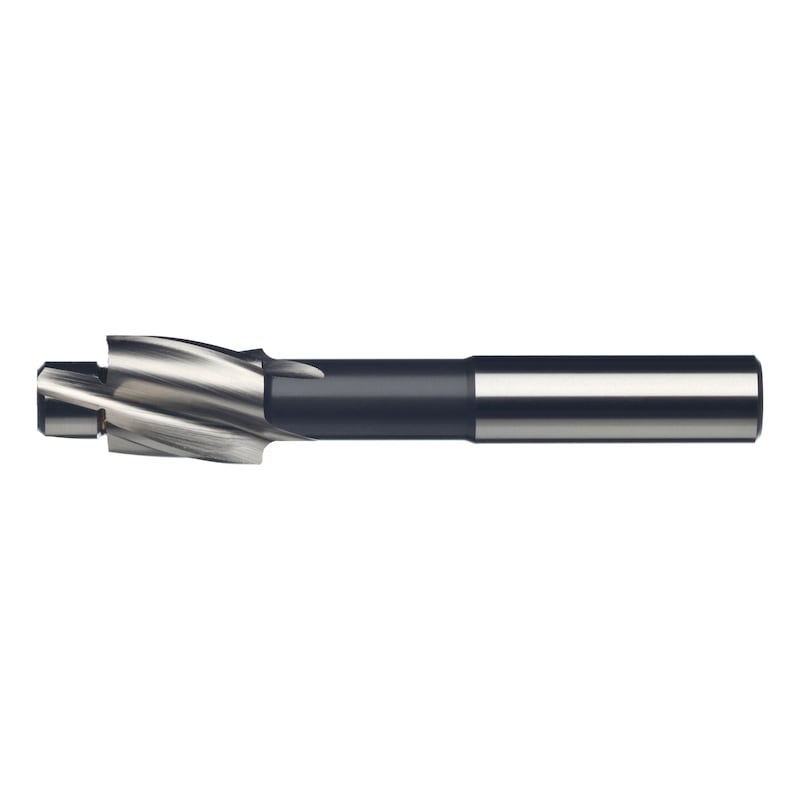

ORION counterbore, 180°, HSS through hole, medium, T=3 M4 8.0 mm x 4.5 mm HA - 180° counterbore, HSS, uncoated for medium through hole

ORION counterbore, 180°, HSS through hole, medium, T=3 M4 8.0 mm x 4.5 mm HA - 180° counterbore, HSS, uncoated for medium through hole - 1

ORION counterbore, 180°, HSS through hole, medium, T=3 M4 8.0 mm x 4.5 mm HA

Name: ORION counterbore, 180°, HSS through hole, medium, T=3 M4 8.0 mm x 4.5 mm HA
Brand: ORION
SKU: 11449040

Brand: ORION

Surface: Uncoated

Length: 71 mm

DIN: 373

Art.-no. 11449040

Manufacturer article no. 11449040

EAN 4039247036752

All versions

Similar products

Individual prices for customers after login

ORION counterbore, 180°, HSS through hole, medium, T=3 M4 8.0 mm x 4.5 mm HA

Art.-no. 11449040

Quantity

Price per

Piece

You need more information or have not found your desired product?

Login/Register
Call customer service: +33 (0)1 69 19 43 90

Application

For producing 180° counterbores of medium quality grade for through holes in accordance with DIN 74-2, type H, J, K and DIN 974-1.

Execution

profile-ground with spiral blade

Advantage

spiral chip flutes ensure smooth cutting and the blade does not catch

Product information

HAHN+KOLB Catalogue

CAD data (available after login)

Certificates/ Documents

Brand	ORION
Main EAN Code	4039247036752
Manufacturer Part Number	11449040
Cutting material	HSS
Surface	Uncoated
Countersink angle	180 Degree
Tool holding device	HA parallel shank
Suitable for screw thread	M4
Spot-facer diameter	8 mm
Diameter of tenon	4.5 mm
Shank diameter	5 mm
Length	71 mm
DIN	373
Gross Weight	0.022 kg

Material groups for cutting values	Description regarding DIN	Strength Class [N/mm²]	Material No.	Vc [m/min]	f [mm/r] with diameter	Suitability
1.00 Steels
1.01 Free machining steel	9 S 20	< 900	1.0711	25-32	0.06-0.1	⚫
1.02 Structural steel	ST 37-2	<500	1.0037	25-32	0.06-0.1	⚫
1.03 Structural steel	ST 60-2	> 500	1.7735	25-30	0.06-0.1	⚫
1.04 Heat-treated steel	42 CrMo 4	<1000	1.7225	20-30	0.06-0.1	⚪
1.05 Cast iron	GS-45	<1000	1.0446	18-22	0.06-0.1	⚪
1.06 Case-hardened steel	16 MnCr 5	<1200	1.7131	18-25	0.05-0.08	⚪
1.07 Ferritic/martensitic stainless steel	X 10 Cr 13	<1100	1.4006	12-16	0.05-0.08	⚪
1.08 Heat-treated steel	43 CrMo 4	>1000	1.3563	12-15	0.05-0.08	⚪
1.09 Nitriding steel	31 CrMoV 9	<1300	1.8519	8-15	0.05-0.08	⚪
1.10 Tool steel	X 38 CrMoV 5 1	<1300	1.2343	10-17	0.05-0.08	⚪
2.00 Stainless steels
2.01 Austenitic stainless steel	G-X 2 CrNiMo 18 15	<1100	1.3953	8-12	0.05-0.08
3.00 Non-ferrous metals
3.01 Long-chipping aluminium	AI99.9	<500	3.0305	70-100	0.08-0.12	⚫
3.02 Short-chipping aluminium	G-AISi12	<500	3.2581	40-80	0.08-0.12	⚫
3.03 Copper alloy bronze, long-chipping	CuSn4	<1200	2.1016	20-35	0.06-0.1	⚫
3.04 Copper alloy bronze, short-chipping	CuNi12Zn24	<850	2.0730	20-35	0.06-0.1	⚫
3.05 Copper alloy brass, long-chipping	Cu Zn 20	<600	2.0250	30-50	0.08-0.12	⚫
3.07 Thermoplastic	Cu Zn 39 Pb 3	<600	2.0381	30-40	0.08-0.12	⚫
3.07 Thermoplastic	PVC, Acrylglas	<100		30-40	0.08-0.12	⚫
3.08 Duroplast	Bakelit, Melamin	<150		30-40	0.08-0.12	⚫
3.09 Fibre-reinforced plastics	CFK, GFK	<1500		30-40	0.08-0.12
3.10 Graphite	C8000	<60		-	-
3.11 Composite materials				-	-
4.00 Cast metal
4.01 Grey cast iron	GG10	<260 HB	0.6010	16-25	0.05-0.08	⚪
4.02 Spheroidal graphite iron	GGG 40	<310 HB	0.7040	16-25	0.05-0.08	⚪
4.03 Ductile iron	GTW-55	<280 HB	0.8055	16-25	0.05-0.08	⚪
5.00 Special alloys
5.01 Titanium alloy	TiAI5Sn2,5	<1200	3.7115	8-15	0.05-0.08
5.02 Nickel-based alloy	NiCr21Mo	<1400	2.4858	-	-
5.03 Super alloys	X45CrSi 9 3	<1400	1.4718	-	-

Alternative products:

1 x

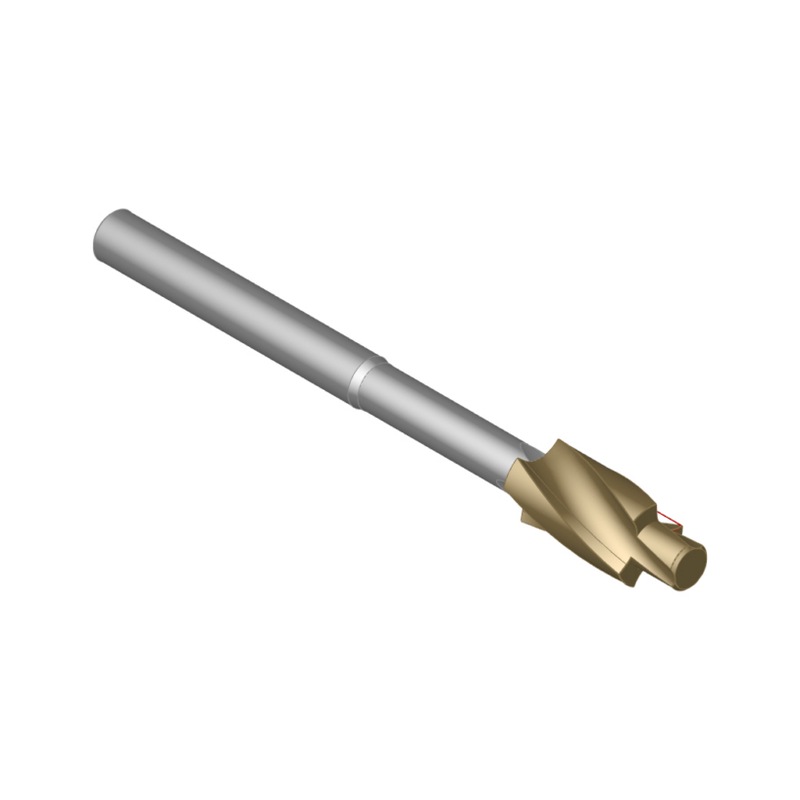

ATORN counterbore, 180°, HSSE through hole, medium, T=3 M4 8.0 mm x 4.5 mm HA
