ORION draw-in collet chuck 355E (L20) DIN 6341 round 2.0 mm smooth
Brand: ORION
Length: 117.5 mm
Art.-no. 23356020
Manufacturer article no. 23356020
EAN 4053625357307
Individual prices for customers after login
Delivery
Ref. no. 23356010-180 = draw-in collet chucks with round profile, available from Ø1 - 18 mm with 0.5 mm increments.
Tips for ordering:
5-digit item no. (23356) for draw-in collet chucks with round profile
Example: draw-in collet chucks 10.5 mm = order no. 23356105
 | |
Brand | ORION |
Main EAN Code | 4053625357307 |
Manufacturer Part Number | 23356020 |

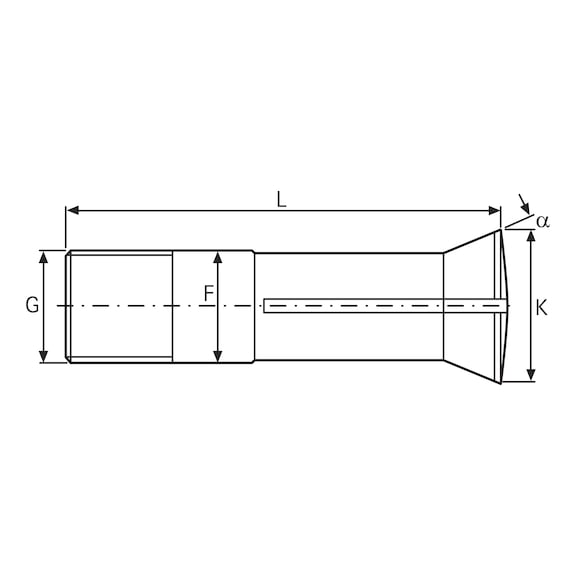

Outer diameter (Außendurchmesser D) | 28 mm |
Diameter (Durchmesser d) | 20 mm |
Length (Länge L) | 117.5 mm |
Clamping diameter | 2.0 mm |
Thread dimension (Gewindeabmessung G) | SG 20 x 2 |
Profile shape | Round and smooth |
Designation | DIN 6341 355 E |
alpha angle | 17° 30' |
Harmonized System Code | 84661020 |
Gross Weight | 0.190 kg |
