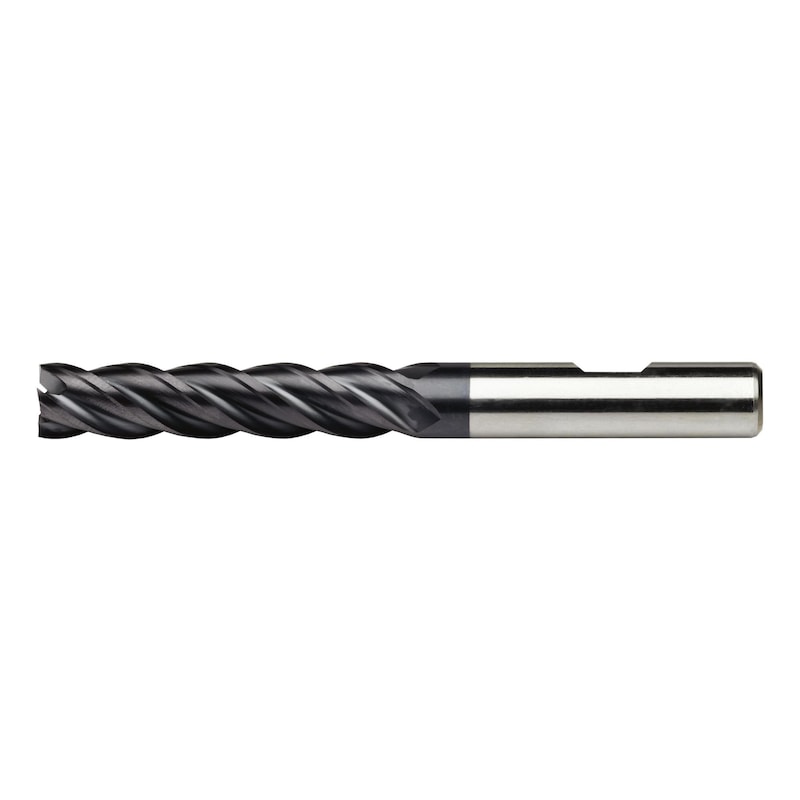

ORION end mill HSSE8 TIALN DIN 844, type N L diameter 20.0 mm

Name: ORION end mill HSSE8 TIALN DIN 844, type N L diameter 20.0 mm
Brand: ORION
SKU: 15195200

Brand: ORION

Surface: TiAlN

Length: 141 mm

Art.-no. 15195200

Manufacturer article no. 15195200

EAN 4039247889969

All versions

Similar products

Individual prices for customers after login

ORION end mill HSSE8 TIALN DIN 844, type N L diameter 20.0 mm

Art.-no. 15195200

Quantity

Price per

Piece

You need more information or have not found your desired product?

Login/Register
Call customer service: +33 (0)1 69 19 43 90

Application

End mill for universal machining in a wide range of materials.

Execution

HSSE Co 8
finishing teeth
centre cutting
TiAIN coating for maximum service life
straight shank DIN 1835 B
40° twist angle

Product information

HAHN+KOLB Catalogue

CAD data (available after login)

Certificates/ Documents

Brand	ORION
Main EAN Code	4039247889969
Manufacturer Part Number	15195200
Cutting material	HSSE Co8
Surface	TiAlN
Type	N
Number of cutting edges (Z)	4 PCS
Twist angle	40°
Edge protection chamfer length	0.2 mm
Tool holding device	HB parallel shank
Construction length	Long
Cutting edge diameter	20 mm
Cutting edge length	75 mm
Length	141 mm
Shank diameter	20 mm
fz steel 700	0.09 mm
Gross Weight	0.287 kg

Material groups for cutting values	Description regarding DIN	Strength Class [N/mm²]	Material No.	Vc [m/min]	fz [mm/T] at diameter	Suitability
1.00 Steels
1.01 Free machining steel	9 S 20	< 900	1.0711	40-45	0.09	⚫
1.02 Structural steel	ST 37-2	<500	1.0037	40-45	0.09	⚫
1.03 Structural steel	ST 60-2	> 500	1.7735	32-36	0.08	⚫
1.04 Heat-treated steel	42 CrMo 4	<1000	1.7225	32-36	0.08	⚫
1.05 Cast iron	GS-45	<1000	1.0446	20-25	0.08	⚫
1.06 Case-hardened steel	16 MnCr 5	<1200	1.7131	35-45	0.08	⚫
1.07 Ferritic/martensitic stainless steel	X 10 Cr 13	<1100	1.4006	18-20	0.08	⚪
1.08 Heat-treated steel	43 CrMo 4	>1000	1.3563	20-25	0.08	⚪
1.09 Nitriding steel	31 CrMoV 9	<1300	1.8519	14-16	0.08	⚪
1.10 Tool steel	X 38 CrMoV 5 1	<1300	1.2343	14-16	0.08	⚪
2.00 Stainless steels
2.01 Austenitic stainless steel	G-X 2 CrNiMo 18 15	<1100	1.3953	20-28	0.08	⚪
3.00 Non-ferrous metals
3.01 Long-chipping aluminium	AI99.9	<500	3.0305	180-350	0.08	⚪
3.02 Short-chipping aluminium	G-AISi12	<500	3.2581	80-90	0.08	⚪
3.03 Copper alloy bronze, long-chipping	CuSn4	<1200	2.1016	30-40	0.08	⚪
3.04 Copper alloy bronze, short-chipping	CuNi12Zn24	<850	2.0730	40-50	0.08	⚪
3.05 Copper alloy brass, long-chipping	Cu Zn 20	<600	2.0250	40-45	0.08	⚪
3.07 Thermoplastic	Cu Zn 39 Pb 3	<600	2.0381	45-55	0.08	⚪
3.07 Thermoplastic	PVC, Acrylglas	<100		120-150	0.08	⚪
3.08 Duroplast	Bakelit, Melamin	<150		80-90	0.08	⚪
3.09 Fibre-reinforced plastics	CFK, GFK	<1500		80-90	0.08
3.10 Graphite	C8000	<60		-
3.11 Composite materials				-
4.00 Cast metal
4.01 Grey cast iron	GG10	<260 HB	0.6010	30-50	0.1	⚪
4.02 Spheroidal graphite iron	GGG 40	<310 HB	0.7040	30-50	0.1	⚪
4.03 Ductile iron	GTW-55	<280 HB	0.8055	30-50	0.1	⚪
5.00 Special alloys
5.01 Titanium alloy	TiAI5Sn2,5	<1200	3.7115	10-20	0.08	⚪
5.02 Nickel-based alloy	NiCr21Mo	<1400	2.4858	10-20	0.08	⚪
5.03 Super alloys	X45CrSi 9 3	<1400	1.4718	10-20	0.08	⚪
