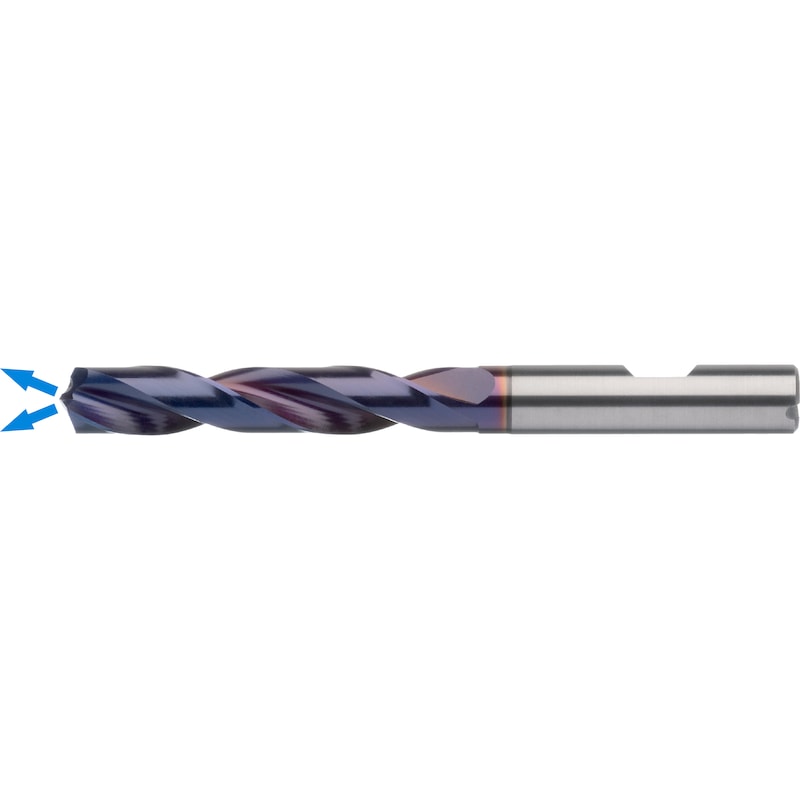

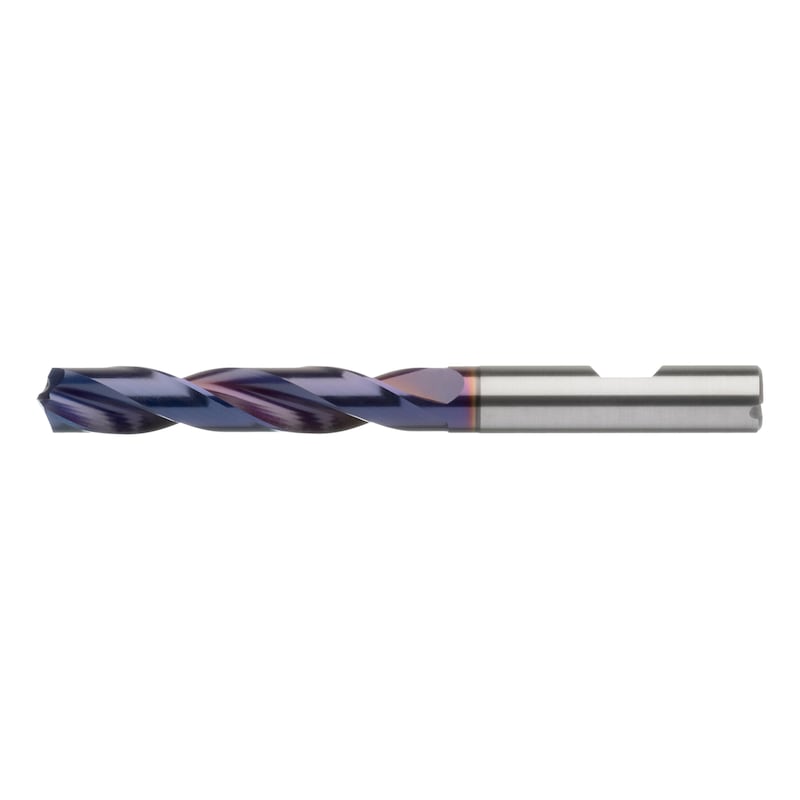

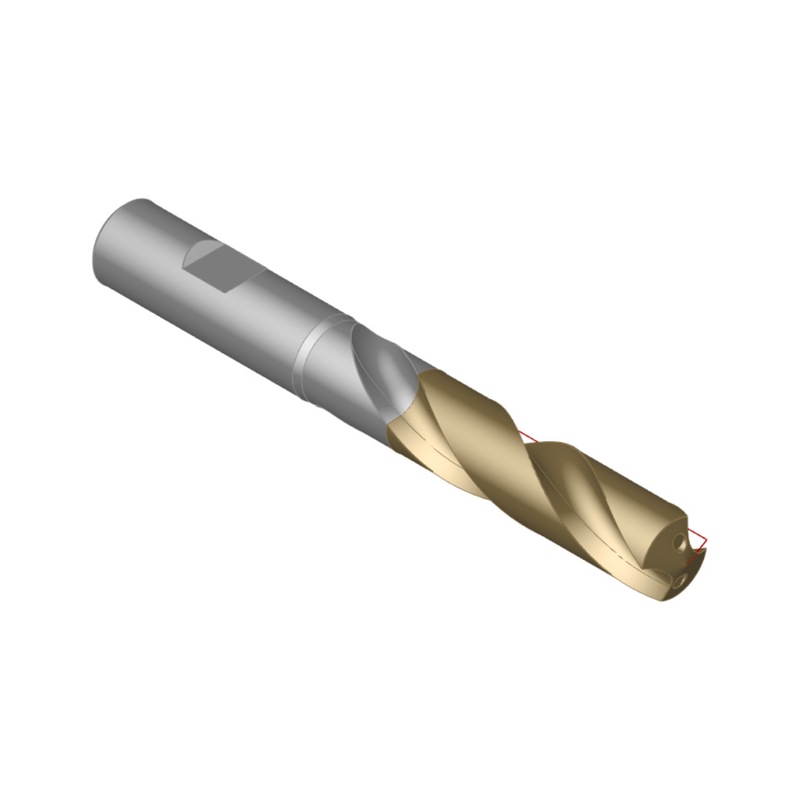

ORION high-perf. drill bit SC TiNAlOX HPC 5xD 15.5 x 16 x 133 mm HB shank w. IC - High-performance drill, solid carbide TiNAlOX HPC 5xD with internal cooling HB

ORION high-perf. drill bit SC TiNAlOX HPC 5xD 15.5 x 16 x 133 mm HB shank w. IC

Name: ORION high-perf. drill bit SC TiNAlOX HPC 5xD 15.5 x 16 x 133 mm HB shank w. IC
Brand: ORION
SKU: 11188155

Brand: ORION

Surface: TiNALOX

Length: 133 mm

DIN: 6537

Art.-no. 11188155

Manufacturer article no. 11188155

EAN 4039247571024

All versions

Similar products

Individual prices for customers after login

ORION high-perf. drill bit SC TiNAlOX HPC 5xD 15.5 x 16 x 133 mm HB shank w. IC

Art.-no. 11188155

Quantity

Price per

Piece

You need more information or have not found your desired product?

Login/Register
Call customer service: +33 (0)1 69 19 43 90

Application

For HPC bore machining up to 1,300 N/mm².

Execution

Solid carbide TiNAlOX high-performance drill
2 drill heels
Four grinding faces
30° spiral angle
Straight main cutting edge

Advantage

universal application ensures maximum flexibility
extremely hard, low-friction, temperature-resistant and form-fitting TiNAlOX coating ensures greater service life
Cutting edge preparation minimises micro-fractures on the cutter

Product information

HAHN+KOLB Catalogue

CAD data (available after login)

Certificates/ Documents

Brand	ORION
Cutting edge diameter	15.50 mm
Main EAN Code	4039247571024
Manufacturer Part Number	11188155
Tolerance of cutting edge diameter	m7
Cutting material	SC
Surface	TiNALOX
Max. drilling depth (D)	5xD
Type	HPC UNI
Coolant supply	Internal
Tool holding device	HB parallel shank
Angle of the tip	140 Degree
Shank diameter	16 mm
Chip flute length	83 mm
Length	133 mm
f steel 1000	0.2 mm/r
DIN	6537
Gross Weight	0.270 kg

Material groups for cutting values	Description regarding DIN	Strength Class [N/mm²]	Material No.	Vc [m/min]	f [mm/r] with diameter	Suitability
1.00 Steels
1.01 Free machining steel	9 S 20	< 900	1.0711	140-175	0.3-0.35	⚫
1.02 Structural steel	ST 37-2	<500	1.0037	120-145	0.3-0.35	⚫
1.03 Structural steel	ST 60-2	> 500	1.7735	110-140	0.3-0.35	⚫
1.04 Heat-treated steel	42 CrMo 4	<1000	1.7225	110-130	0.3-0.35	⚫
1.05 Cast iron	GS-45	<1000	1.0446	70-110	0.28-0.32	⚫
1.06 Case-hardened steel	16 MnCr 5	<1200	1.7131	90-145	0.28-0.32	⚫
1.07 Ferritic/martensitic stainless steel	X 10 Cr 13	<1100	1.4006	50-60	0.28-0.2	⚫
1.08 Heat-treated steel	43 CrMo 4	>1000	1.3563	110-125	0.28-0.32	⚫
1.09 Nitriding steel	31 CrMoV 9	<1300	1.8519	90-120	0.28-0.32	⚫
1.10 Tool steel	X 38 CrMoV 5 1	<1300	1.2343	60-80	0.14-0.17	⚫
2.00 Stainless steels
2.01 Austenitic stainless steel	G-X 2 CrNiMo 18 15	<1100	1.3953	50-60	0.28-0.2	⚫
3.00 Non-ferrous metals
3.01 Long-chipping aluminium	AI99.9	<500	3.0305	250-310	0.32-0.37	⚪
3.02 Short-chipping aluminium	G-AISi12	<500	3.2581	200-260	0.32-0.37	⚫
3.03 Copper alloy bronze, long-chipping	CuSn4	<1200	2.1016	80-90	0.3-0.32	⚪
3.04 Copper alloy bronze, short-chipping	CuNi12Zn24	<850	2.0730	100-125	0.3-0.32	⚫
3.05 Copper alloy brass, long-chipping	Cu Zn 20	<600	2.0250	180-220	0.3-0.32	⚪
3.07 Thermoplastic	PVC, Acrylglas	<100		40-100	0.23-0.26	⚫
3.07 Thermoplastic	Cu Zn 39 Pb 3	<600	2.0381	280-325	0.3-0.32	⚫
3.08 Duroplast	Bakelit, Melamin	<150		40-80	0.23-0.26	⚫
3.09 Fibre-reinforced plastics	CFK, GFK	<1500		40-70	0.23-0.26
3.10 Graphite	C8000	<60		90-130	0.21-0.225
4.00 Cast metal
4.01 Grey cast iron	GG10	<260 HB	0.6010	160-210	0.3-0.35	⚫
4.02 Spheroidal graphite iron	GGG 40	<310 HB	0.7040	130-140	0.3-0.35	⚫
4.03 Ductile iron	GTW-55	<280 HB	0.8055	120-130	0.3-0.35	⚫
5.00 Special alloys
5.01 Titanium alloy	TiAI5Sn2,5	<1200	3.7115	40-45	0.12-0.15	⚪
5.02 Nickel-based alloy	NiCr21Mo	<1400	2.4858	30-40	0.12-0.15	⚪
5.03 Super alloys	X45CrSi 9 3	<1400	1.4718	22-40	0.12-0.15	⚪
