Name: ORION surface chuck HSK63, DIN 69893-A D25 projection length 110 mm DIN 69893-A
Brand: ORION
SKU: 23157224

Brand: ORION

Length: 84 mm

Art.-no. 23157224

Manufacturer article no. 23157224

EAN 4053625292172

All versions

Similar products

Individual prices for customers after login

ORION surface chuck HSK63, DIN 69893-A D25 projection length 110 mm DIN 69893-A

Art.-no. 23157224

Quantity

Price per

Piece

You need more information or have not found your desired product?

Login/Register
Call customer service: +33 (0)1 69 19 43 90

Application

For clamping tools with straight shanks and clamping surfaces in line with DIN 1835 B.

Execution

All tapers and tolerances are precision-ground.
Taper tolerance AT3.
Strength HRC 57-60.
Core strength 1,000-1,200 N/mm².
With Balluff chip hole.
All functional surfaces machined.

Advantage

Prevents the tool from slipping while maintaining high concentricity.

Delivery

1x surface chuck (Weldon) in accordance with ISO 12164 (DIN 69893).

Product information

HAHN+KOLB Catalogue

CAD data (available after login)

Certificates/ Documents


Brand	ORION
Main EAN Code	4053625292172
Manufacturer Part Number	23157224
Tool holding device	HSK 63
Clamping diameter (d)	25 mm

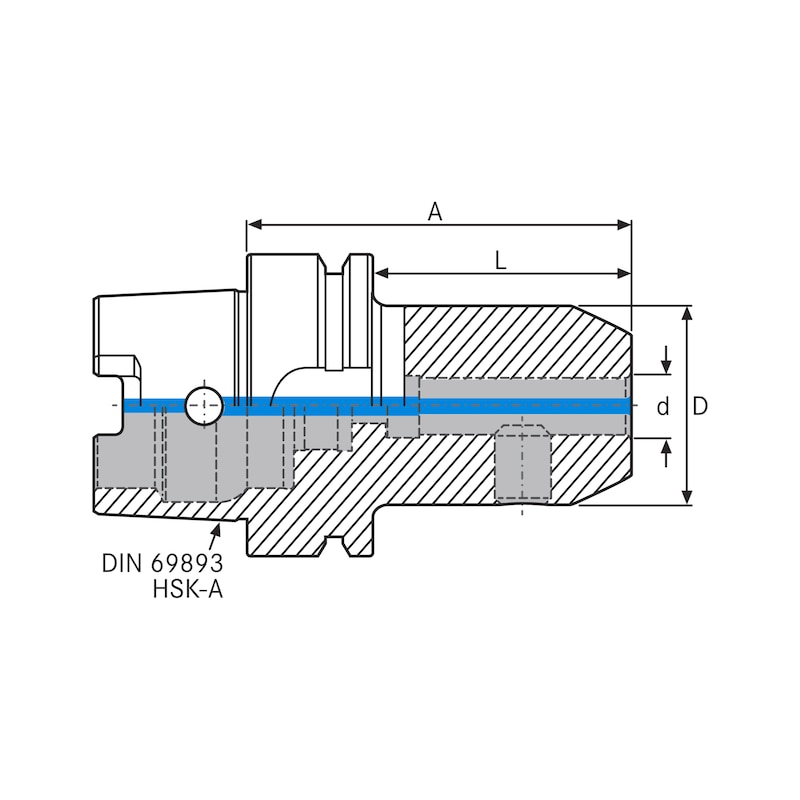

Projecting length (A)	110 mm
Length (L)	84 mm
Outer diameter (D)	65 mm
Coolant supply	Internal axial
Balancing quality	G 6.3 at 15,000 rpm
Gross Weight	2.340 kg

Alternative products:

1 x

ATORN surface chuck (Weldon) HSK63 (ISO 12164) dia. 25 mm A=110 mm

Surface chuck (Weldon) HSK63

ATORN

Art.-no. 23157640

Quantity: 1 x
