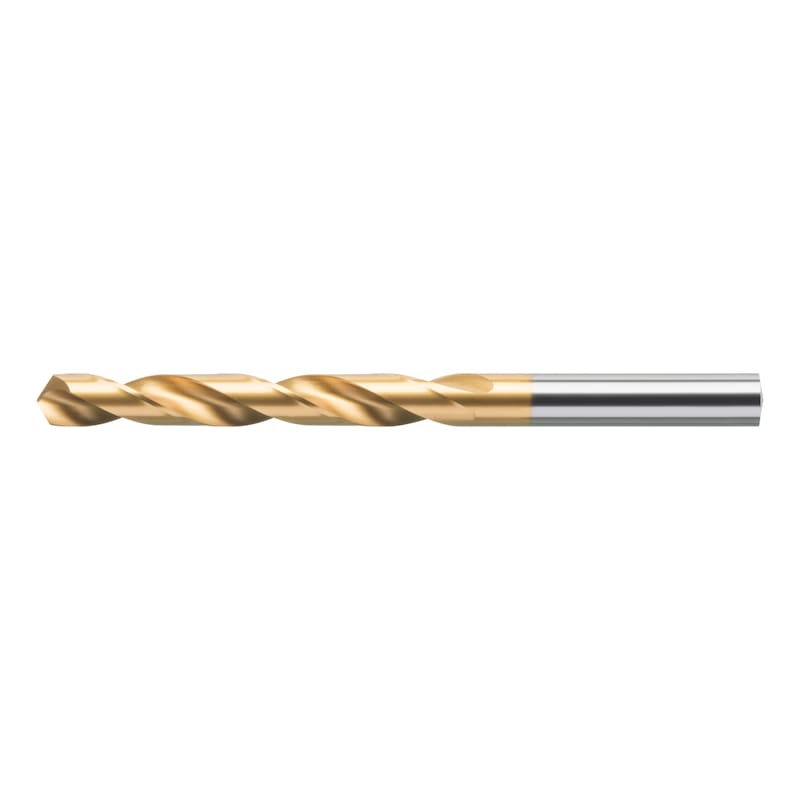

ORION twist drill N HSS-TiN, DIN 338, 5.4 mm x 93 mm x 57 mm, 118° - Twist drill type N HSS-TiN

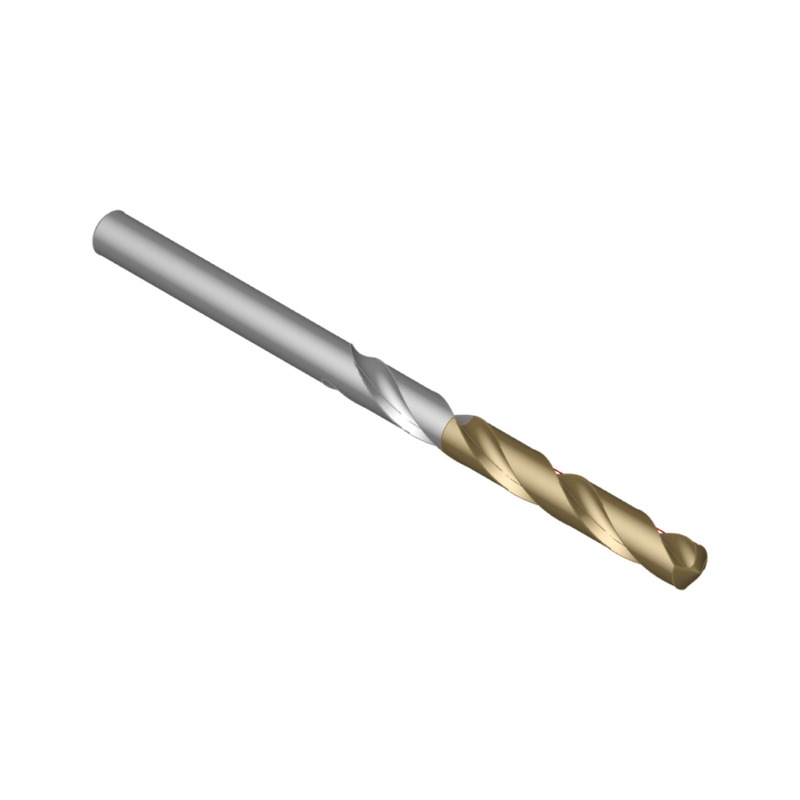

ORION twist drill N HSS-TiN, DIN 338, 5.4 mm x 93 mm x 57 mm, 118° - Twist drill type N HSS-TiN - 1

ORION twist drill N HSS-TiN, DIN 338, 5.4 mm x 93 mm x 57 mm, 118°

Name: ORION twist drill N HSS-TiN, DIN 338, 5.4 mm x 93 mm x 57 mm, 118°
Brand: ORION
SKU: 11031355

Brand: ORION

Surface: TiN

DIN: 338

Length: 93 mm

Art.-no. 11031355

Manufacturer article no. 11031355

EAN 4039247008926

All versions

Similar products

Individual prices for customers after login

ORION twist drill N HSS-TiN, DIN 338, 5.4 mm x 93 mm x 57 mm, 118°

Art.-no. 11031355

Quantity

Price per

Piece

You need more information or have not found your desired product?

Login/Register
Call customer service: +33 (0)1 69 19 43 90

Application

Standard geometry for universal use up to 1000 N/mm².

Execution

Twist drill with universal standard geometry

Advantage

excellent all-round properties and precise cutting pattern
universal use: minimises tool costs and improves flexibility
TiN coating for increased service life requirements

Delivery

box quantity: drill Ø 1.0–6.0 mm = 10 units (price per unit)

Product information

HAHN+KOLB Catalogue

CAD data (available after login)

Certificates/ Documents

Brand	ORION
Main EAN Code	4039247008926
Manufacturer Part Number	11031355
Cutting material	HSS
Surface	TiN
Type	N
Angle of the tip	118 Degree
Self-centring	No
DIN	338
Tool holding device	HA parallel shank
Cutting edge diameter	5.40 mm
Chip flute length	57 mm
Length	93 mm
f steel 700	0.13 mm/r
Gross Weight	0.013 kg

Material groups for cutting values	Description regarding DIN	Strength Class [N/mm²]	Material No.	Vc [m/min]	f [mm/r] with diameter	Suitability
1.00 Steels
1.01 Free machining steel	9 S 20	< 900	1.0711	25-45	0.06-0.2	⚫
1.02 Structural steel	ST 37-2	<500	1.0037	30-50	0.06-0.2	⚫
1.03 Structural steel	ST 60-2	> 500	1.7735	25-40	0.04-0.15	⚫
1.04 Heat-treated steel	42 CrMo 4	<1000	1.7225	18-22	0.04-0.15	⚪
1.05 Cast iron	GS-45	<1000	1.0446	18-22	0.04-0.15	⚪
1.06 Case-hardened steel	16 MnCr 5	<1200	1.7131	8-23	0.04-0.1	⚪
1.07 Ferritic/martensitic stainless steel	X 10 Cr 13	<1100	1.4006	6-14	0.04-0.1	⚪
1.08 Heat-treated steel	43 CrMo 4	>1000	1.3563	8-14	0.04-0.1
1.09 Nitriding steel	31 CrMoV 9	<1300	1.8519	8-14	0.04-0.1
1.10 Tool steel	X 38 CrMoV 5 1	<1300	1.2343	6-10	0.04-0.1
2.00 Stainless steels
2.01 Austenitic stainless steel	G-X 2 CrNiMo 18 15	<1100	1.3953	8-15	0.04-0.1
3.00 Non-ferrous metals
3.01 Long-chipping aluminium	AI99.9	<500	3.0305	45-90	0.06-0.2	⚪
3.02 Short-chipping aluminium	G-AISi12	<500	3.2581	35-60	0.06-0.2	⚪
3.03 Copper alloy bronze, long-chipping	CuSn4	<1200	2.1016	15-35	0.04-0.15	⚫
3.04 Copper alloy bronze, short-chipping	CuNi12Zn24	<850	2.0730	25-45	0.04-0.15	⚫
3.05 Copper alloy brass, long-chipping	Cu Zn 20	<600	2.0250	35-60	0.06-0.2	⚪
3.07 Thermoplastic	PVC, Acrylglas	<100		25-35	0.06-0.2	⚪
3.07 Thermoplastic	Cu Zn 39 Pb 3	<600	2.0381	60-100	0.06-0.2	⚫
3.08 Duroplast	Bakelit, Melamin	<150		12-25	0.06-0.2	⚪
3.09 Fibre-reinforced plastics	CFK, GFK	<1500		10-25	0.04-0.1	⚪
3.10 Graphite	C8000	<60		-	-	⚪
3.11 Composite materials				-	-	⚪
4.00 Cast metal
4.01 Grey cast iron	GG10	<260 HB	0.6010	20-30	0.06-0.2	⚪
4.02 Spheroidal graphite iron	GGG 40	<310 HB	0.7040	20-30	0.06-0.2	⚪
4.03 Ductile iron	GTW-55	<280 HB	0.8055	20-30	0.06-0.2	⚪
5.00 Special alloys
5.01 Titanium alloy	TiAI5Sn2,5	<1200	3.7115	5-10	0.04-0.1	⚪
5.02 Nickel-based alloy	NiCr21Mo	<1400	2.4858	5-10	0.04-0.1
5.03 Super alloys	X45CrSi 9 3	<1400	1.4718	5-10	0.04-0.1
