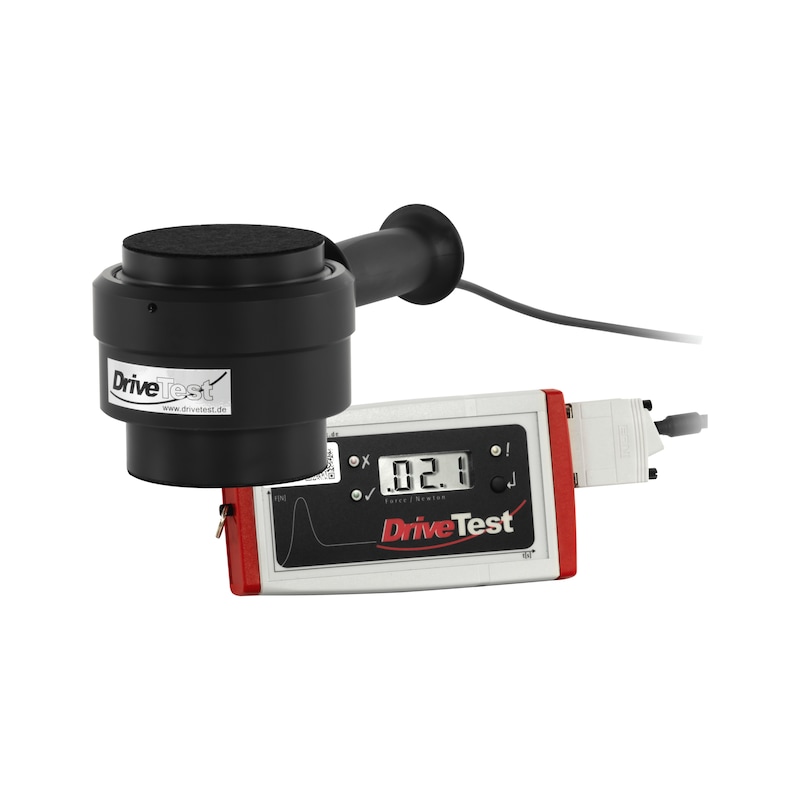

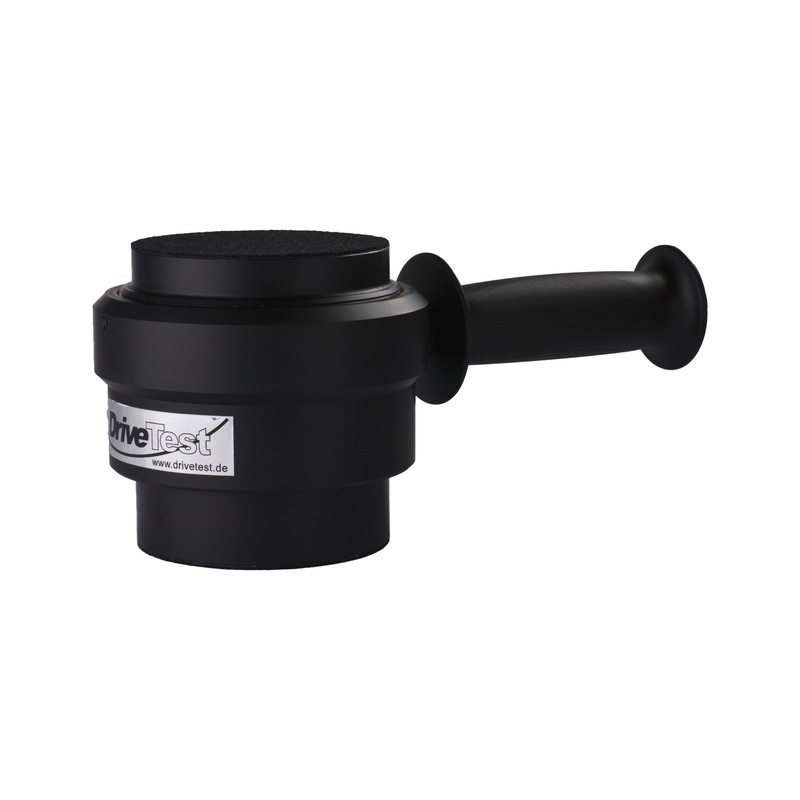

PCE Instruments BIA1-SY-10-310 closing force measurement system
Brand: DRIVETEST
Art.-no. 44430010
Manufacturer article no. BIA1-SY-10-310
Individual prices for customers after login
Application
Electronic closing force measuring instrument for standard-compliant inspection of bus and train doors as well as sliding steps.
Execution
- Wired version
- Class 1
- Evaluation in accordance with EN 14752:2005, VDV 111, 2001/85/EC
- Strain gauges
Advantage
- PinchPilot PC evaluation software, multilingual
- Process reliability: integrated test instruction ensures guideline-compliant measurements
- User guidance and evaluation in accordance with EN 14752:2005, VDV 111, 2001/85/EC
- Precise measurements guaranteed by six ball bearings in guide
- Measuring point identification using QR and barcodes (integrated solution)
Brand | DRIVETEST |
Manufacturer Part Number | BIA1-SY-10-310 |
Min./max. force of measuring range | 25-310 N |
Type description | BIA1-SY-10-310 |
Harmonized System Code | 90318080 |
Gross Weight | 2.100 kg |
