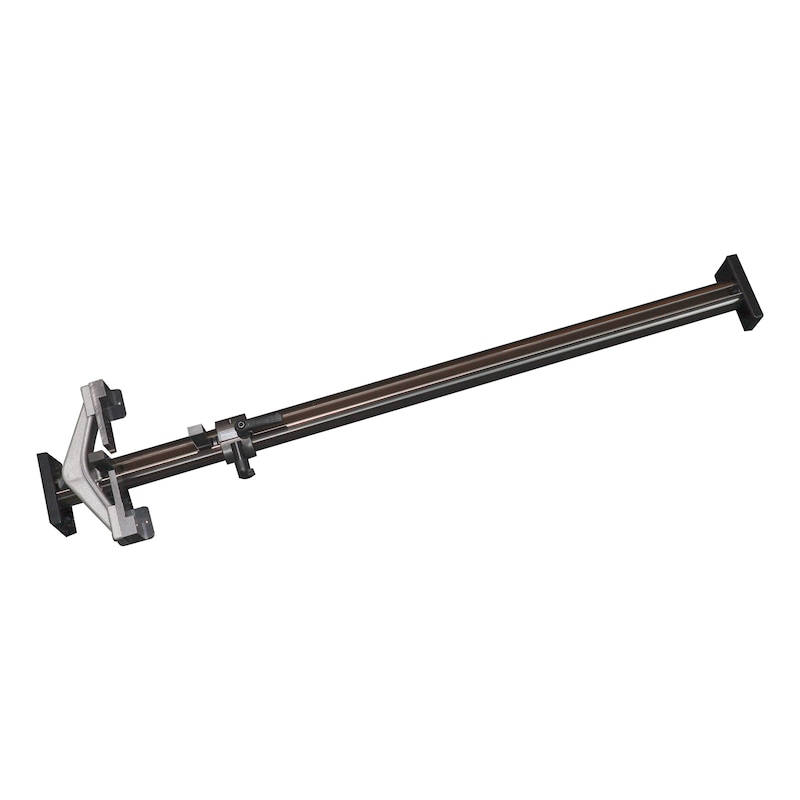

SUBITO setting device ESU for 20–300 mm in box

Brand: SCHWENK

Art.-no. 33582020

Manufacturer article no. 12500005


Individual prices for customers after login

You need more information or have not found your desired product?

Application

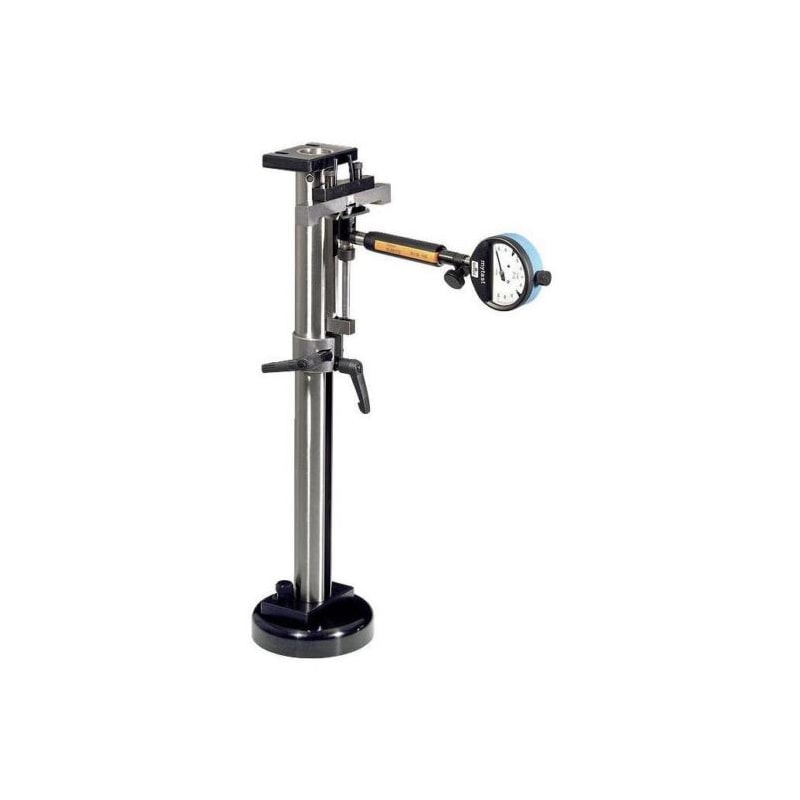

For precise adjustment of internal precision measuring instruments to the required dimensions. In order to obtain the desired dimension, a combination of gauge blocks (not included in the scope of delivery) is inserted in the groove between the two measuring arms. Depending on the scale of the gauge blocks, it is even possible to create setting gauges with 0.5 µm increments. A Subito should always be adjusted in the measuring position in which it will subsequently be used.

Execution

  • Adjustment jaws made of hardened steel
  • Fixed and loose measuring jaws made from cemented carbide lapped to gauge block quality
  • Clamping element fixes the gauge block unit with reproducible force

Advantage

  • Horizontal and vertical setting options
  • Economic alternative to multiple expensive setting rings
  • Combining gauge blocks is a cost-effective and flexible way to realise intermediate dimensions

Delivery

Includes accessories, without SUBITO, precision pointer and gauge blocks

Product information

Certificates/ Documents

 |

 |

Brand

SCHWENK

Manufacturer Part Number

12500005

Min./max. length of application area

20-300 mm

Gross Weight

6.230 kg

Art.-no.
Cust. Mat. No.

Hazardous Material

Product information
CAD data (available after login)

Certificates/ Documents

 |

 |

Technical information
