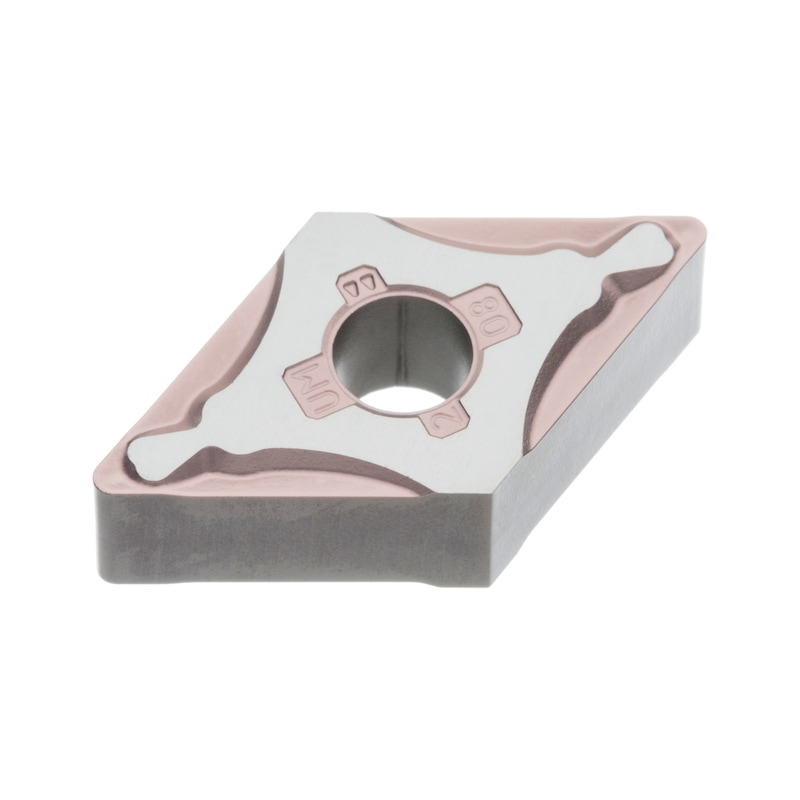

WIDIA high-performance indexable inserts DNMG 150608-UM WM35CT

Brand: WIDIA

Art.-no. 17685720

Manufacturer article no. 4172420

EAN 4021169573699


Individual prices for customers after login

You need more information or have not found your desired product?

Application

For longitudinal turning and copy turning with a wide infeed range in unfavourable cutting conditions

Advantage

  • Very tough type with low risk of breakage in unfavourable cutting conditions
  • Positive soft-cutting chip geometry with a wide infeed range and stable blades
Product information
CAD data (available after login)

Certificates/ Documents

 |

 |

Machining conditions for indexable insert

Unfavourable

Brand

WIDIA

Main EAN Code

4021169573699

Manufacturer Part Number

4172420

Shape of indexable insert ISO

D

Clearance angle of indexable insert ISO

N

Tolerance class of indexable insert ISO

M

Indexable insert type ISO

G

Size of indexable insert ISO

15

Thickness of indexable insert ISO

06

Corner radius of indexable insert ISO

08

Coating

CVD

Carbide type area ISO

M

Carbide type ISO

M35

Carbide type

WM35CT

ISO-Code Rotating

DNMG 150608

Material to be processed

Steel, Stainless steel

min./max. ap

0,6-3 mm

f min./max.

0,15-0,3 mm/U

Materials group

M (primary application), P (secondary application)

f min.

0.15 mm/r

max. f

0.3 mm/r

max. ap

3 mm

min. ap

0.6 mm

Supply type

Medium processing - Universal geometry with wide service range

Chip breaker code (Bez.)

UM

Min./max. Vc in steel

60-220 m/min

Min./max. Vc in stainless steel

80-140 m/min

Min./max. Vc in special alloys

15-45 m/min

Harmonized System Code

82090020

Number of pieces per packet

10 PCS

Gross Weight

0.014 kg
