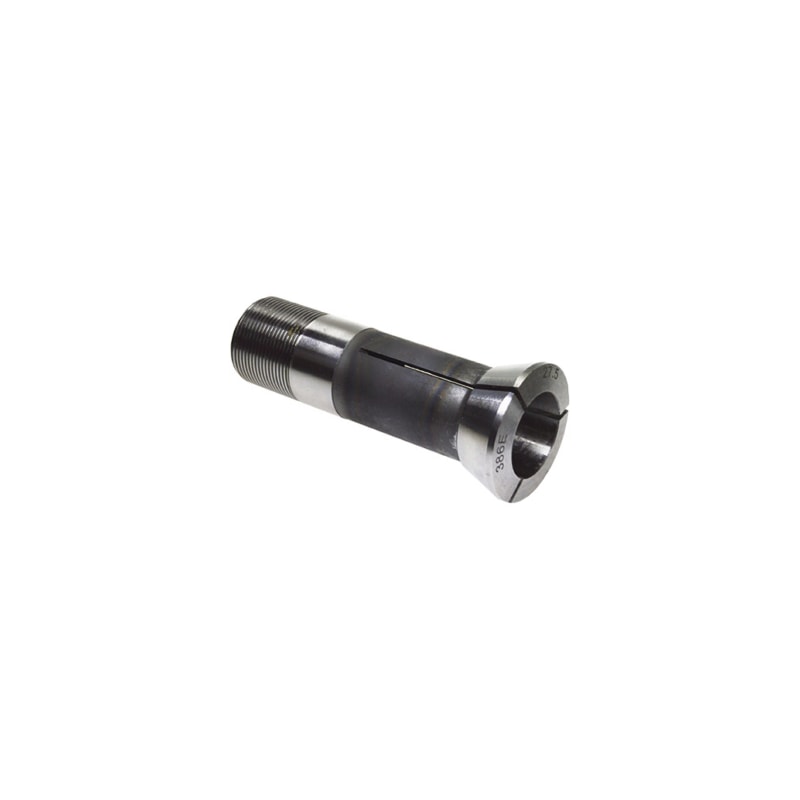

draw-in collet chuck 386E (K32) DIN 6341 round 12.0 mm smooth
Brand: ORION
Length: 110 mm
Art.-no. 23356320
Manufacturer article no. 23356320
EAN 4053625357857
Individual prices for customers after login
Delivery
Ref. no. 23356210-490 = draw-in collet chucks with round profile, available from Ø1 - 29 mm with 0.5 mm increments.
Tips for ordering:
5-digit item no. (23356) for draw-in collet chucks with round profile
Example: draw-in collet chucks Ø10.5 mm = order no. 23356305"
 | |
Brand | ORION |
Main EAN Code | 4053625357857 |
Manufacturer Part Number | 23356320 |

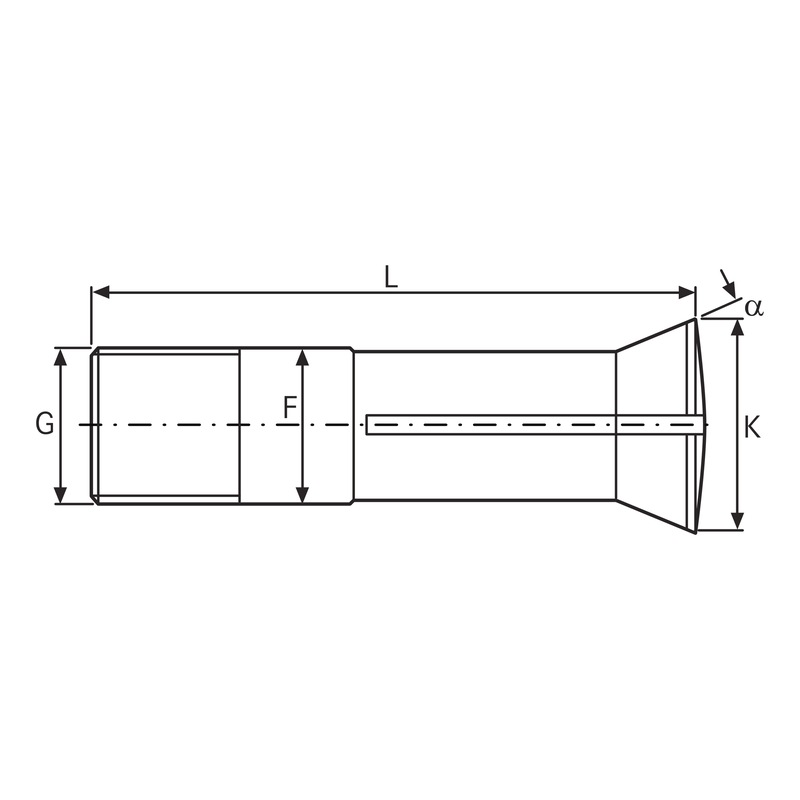

Outer diameter (Außendurchmesser D) | 45 mm |
Diameter (Durchmesser d) | 32 mm |
Length (Länge L) | 110 mm |
Clamping diameter | 12.0 mm |
Thread dimension (Gewindeabmessung G) | TT32 x 1.5 |
Profile shape | Round and smooth |
Designation | DIN6341 K32 386E |
alpha angle | 20° |
Harmonized System Code | 84661020 |
Gross Weight | 0.358 kg |
